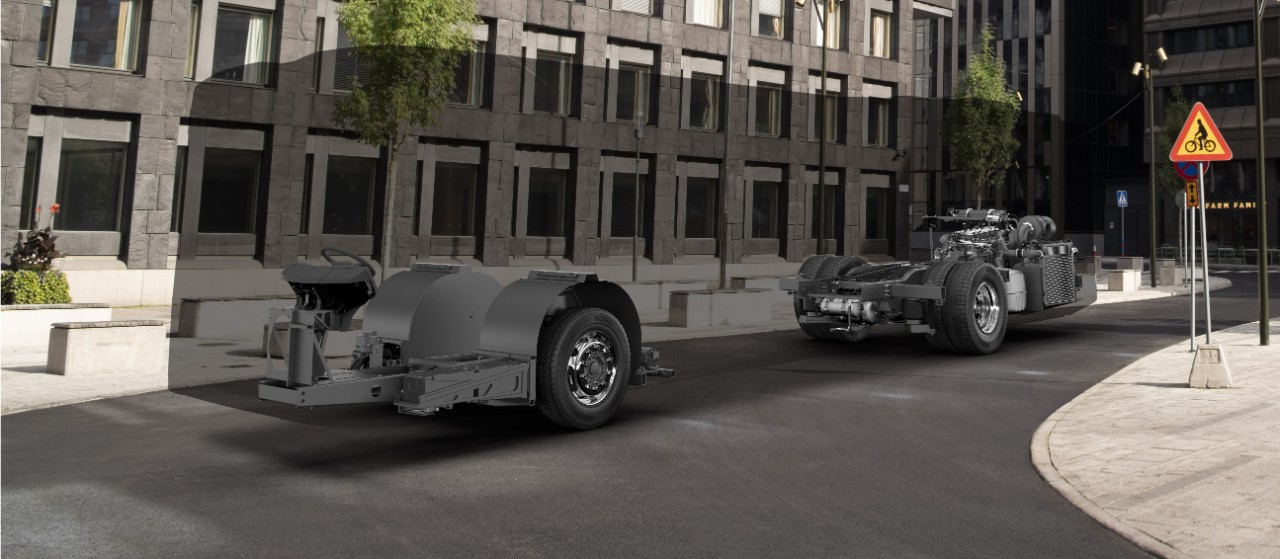

Scania K-chassis

Low entry

Powertrains

The low entry Scania K-chassis offers a wide range of energy efficient and reliable powertrains optimised for inner-city and suburban operations.

Volume	Output	Torque	Fuel options
9-litre	250 Hp (184 kW)	1250 Nm	Biodiesel, HVO, Diesel
9-litre	310 Hp (228kW)	1550 Nm	Biodiesel, HVO, Diesel
13-litre	360 Hp (265 kW)	1800 Nm	Biodiesel, HVO, Diesel
Fuel capacity: 140 - 360 litres, 450 - 560 litres (articulated) Gearboxes: 6-speed fully automatic gearbox 12-speed gearbox with Scania Opticruise

Volume	Output	Torque	Emission Control	Fuel options
9-litre	280 Hp (206 kW)	1350 Nm	Exhaust gas recirculation (EGR)	Biogas, Natural gas
9-litre	340 Hp (250 kW)	1600 Nm	Exhaust gas recirculation (EGR)	Biogas, Natural gas
Fuel capacity: 1260-1875 litres Gearboxes: 6-speed fully automatic gearbox 12-speed gearbox with Scania Opticruise

Volume

Output

Torque

Emission Control

Fuel options

9-litre

280 Hp (206 kW)

1350 Nm

Exhaust gas recirculation (EGR)

Biogas, Natural gas

9-litre

340 Hp (250 kW)

1600 Nm

Exhaust gas recirculation (EGR)

Biogas, Natural gas

Fuel capacity:

1260-1875 litres
Gearboxes:

6-speed fully automatic gearbox
12-speed gearbox with Scania Opticruise

Axles

The low entry Scania K-chassis is available in several variants enabling it to meet different operational demands.

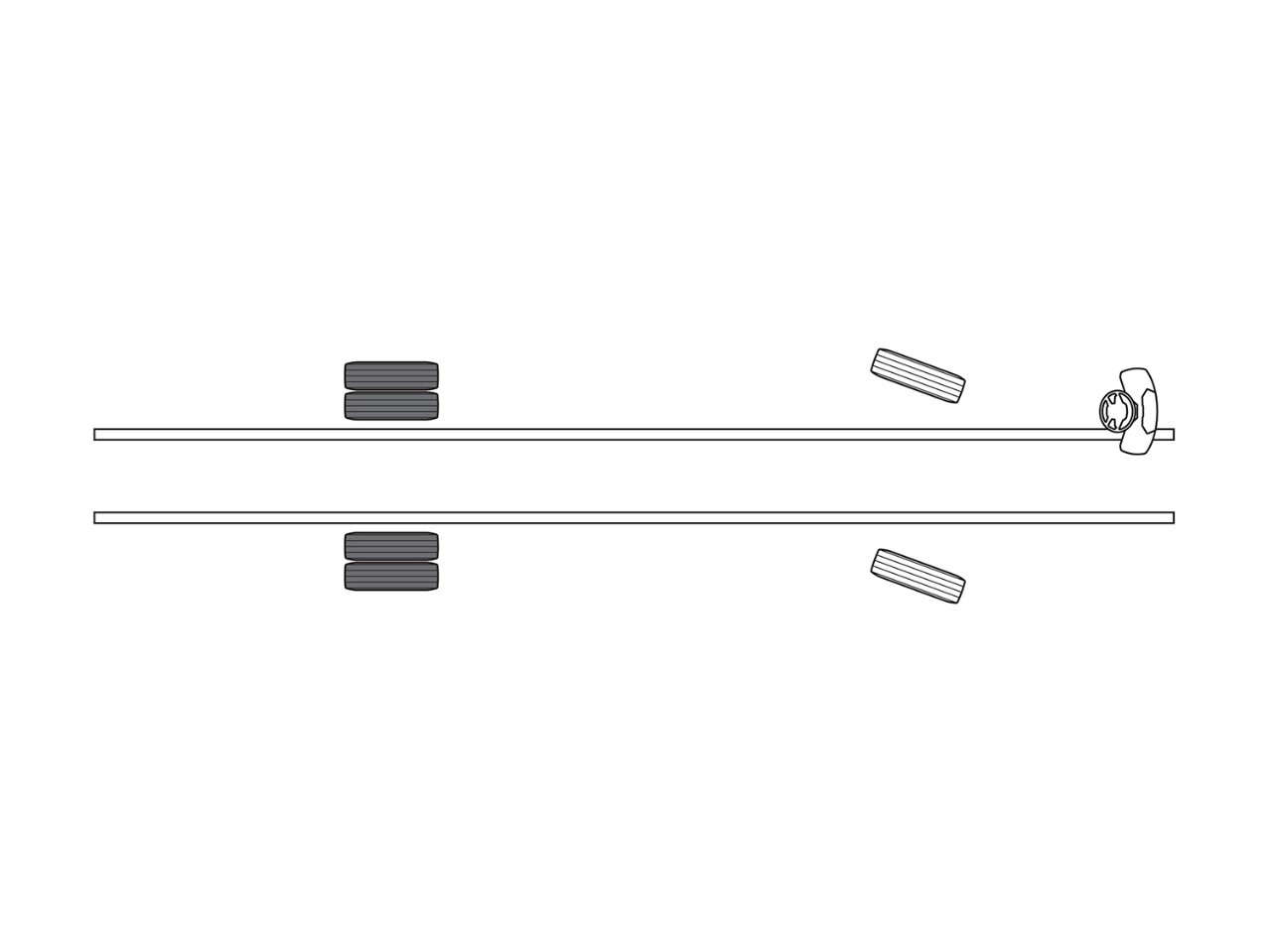

4x2 - independent suspension or rigid axle

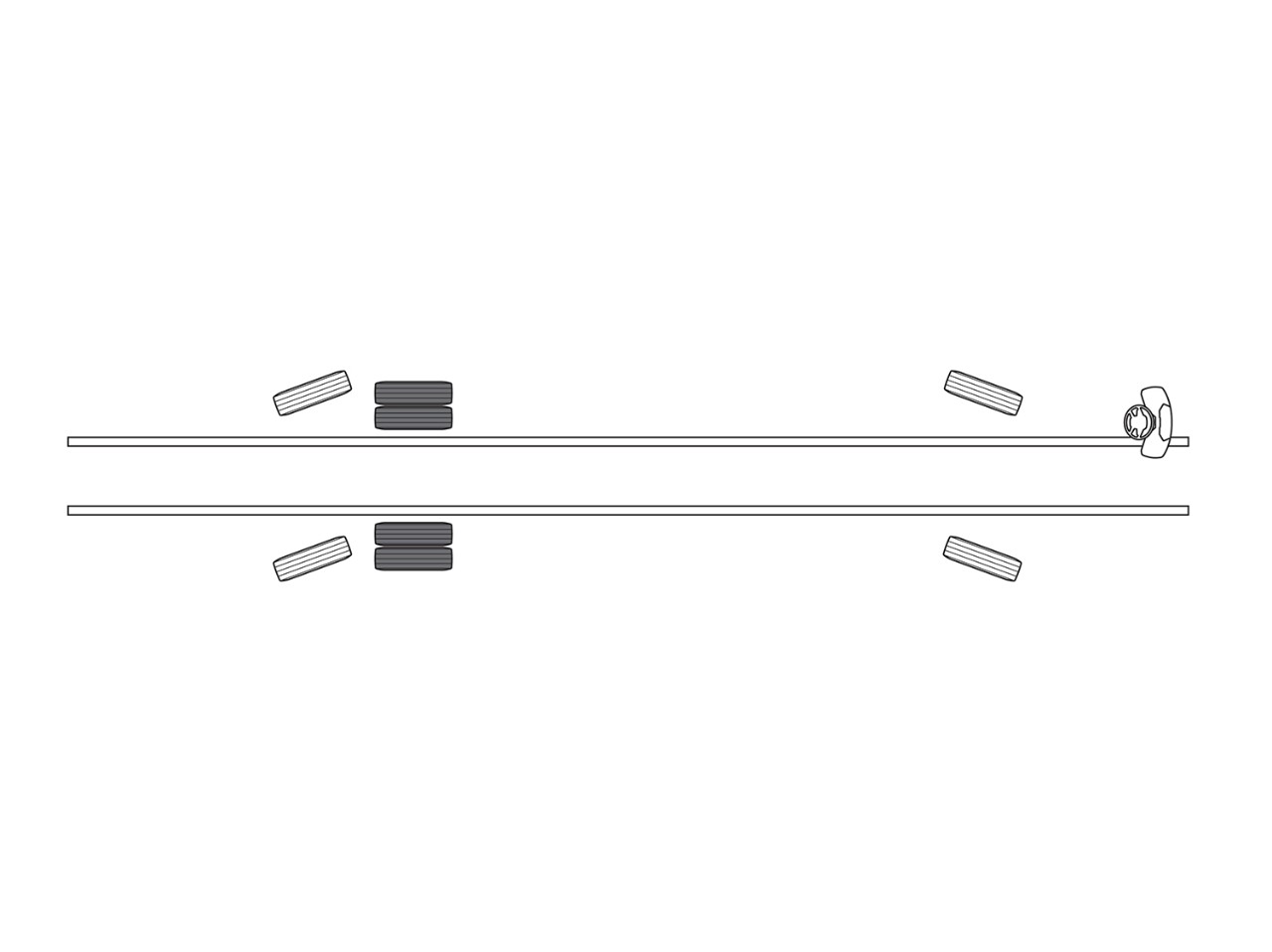

6x2*4 - independent suspension or rigid axle

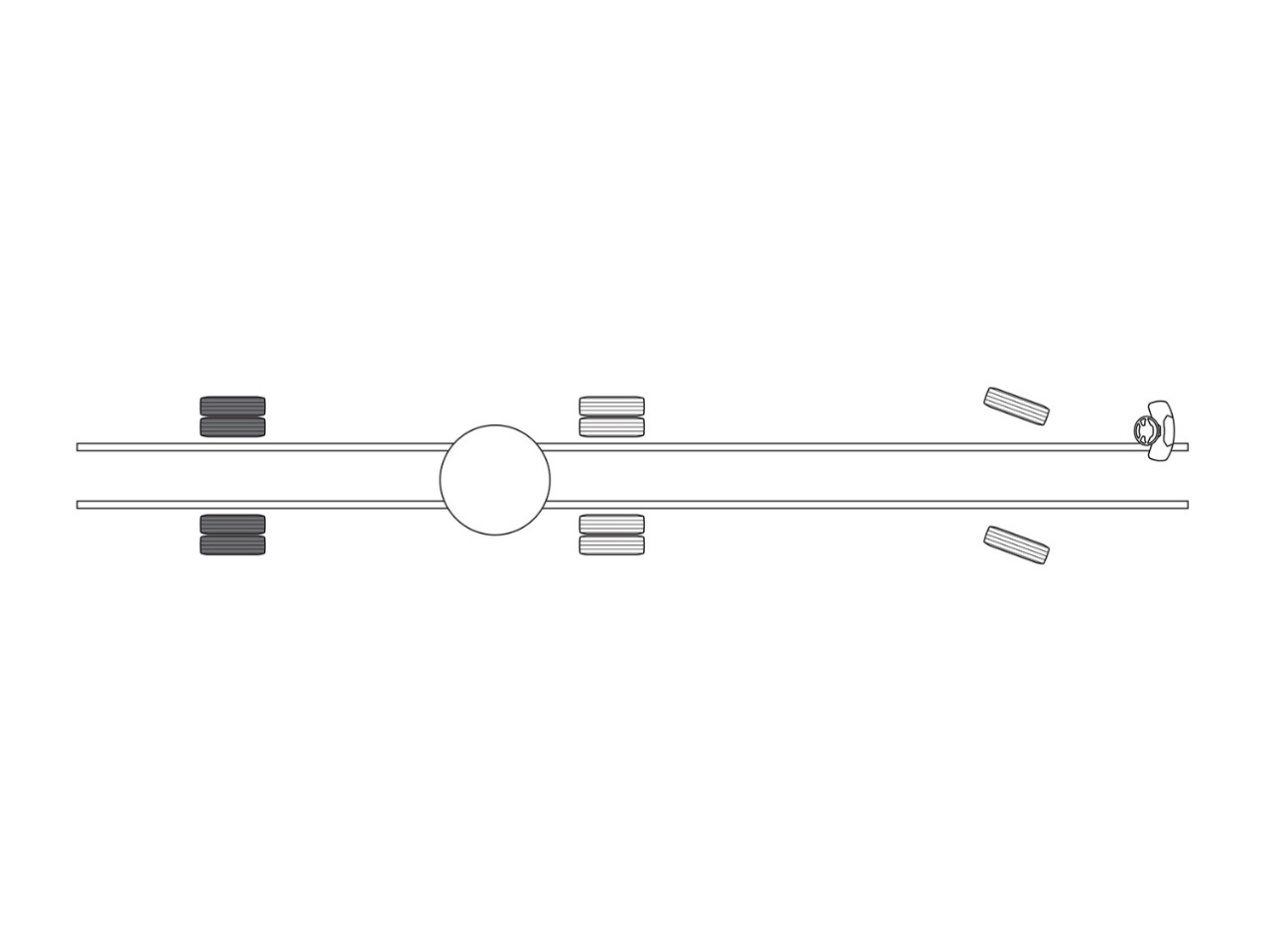

6x2/2 - (artic) independent suspension or rigid axle

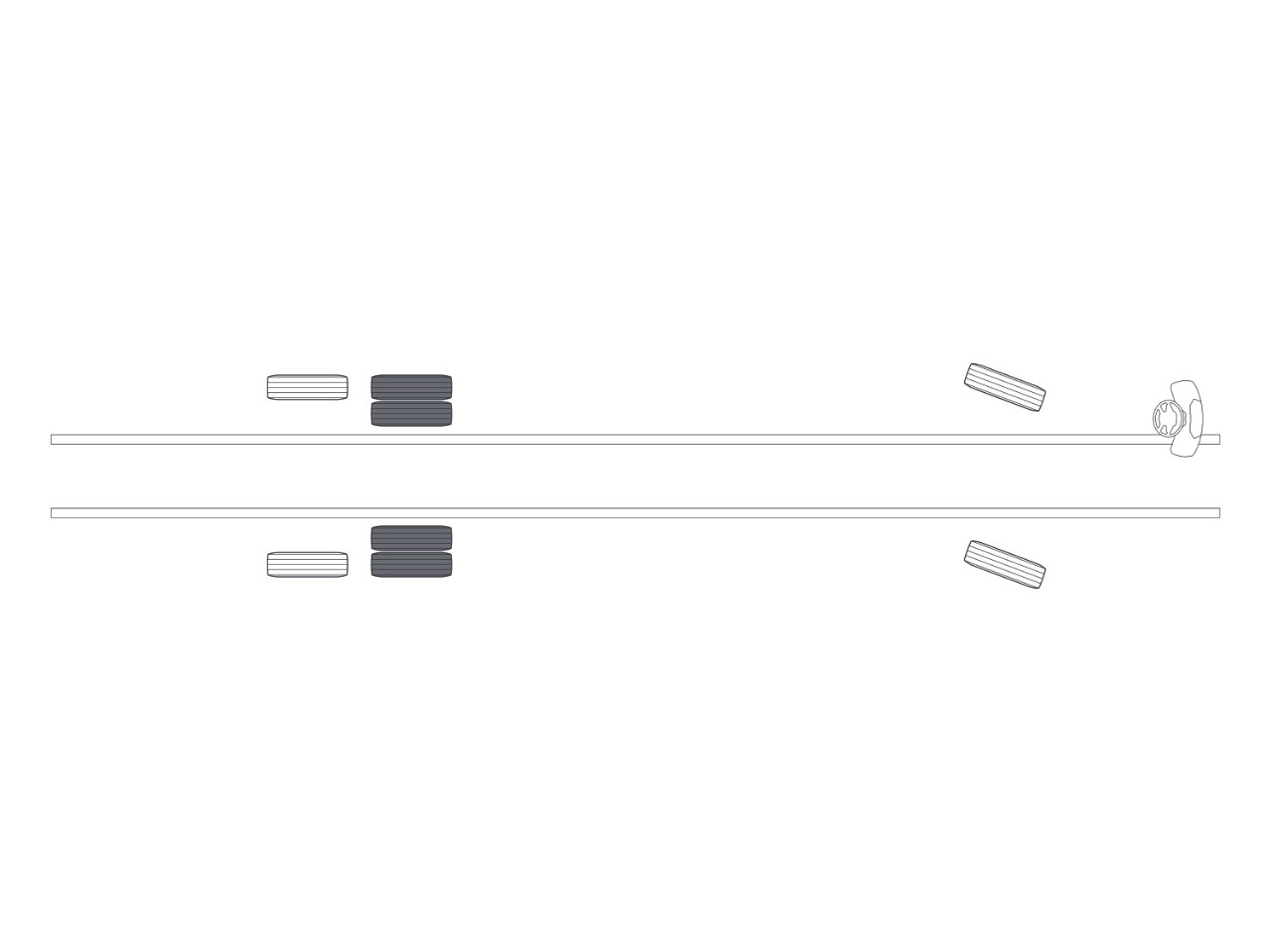

6x2 - rigid front axle only

Floor level

The low entry point and flat floor up to the central doors area offer the same accessibility as for the low floor version in the front and middle sections. In the rear section a higher floor creates better view for passengers. The widened aisle contributes to increased accessibility, comfort and passenger flow.

Design features

The low entry Scania K-chassis meet the needs of operators on every continent. With total design and production control over chassis and powertrain, Scania delivers unrivalled reliability, durability and performance.

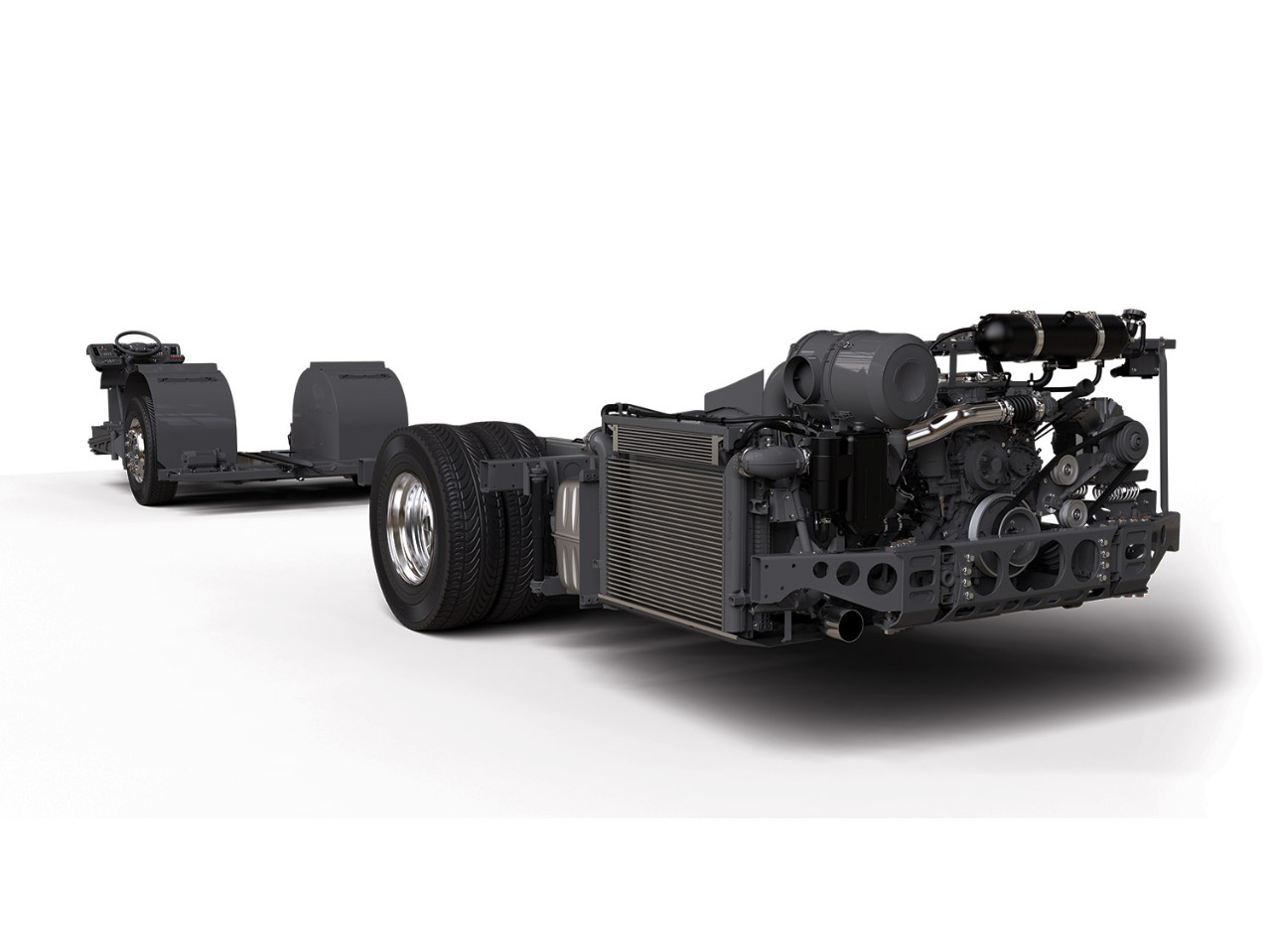

Chassis frame

The strengthened front axle, in combination with the ability to now use wider tyres, means that load capacity is increased from 7.1 to 8.2 tonnes. It also enables optimised weight distribution between the front and rear axles – especially important for gas vehicles.

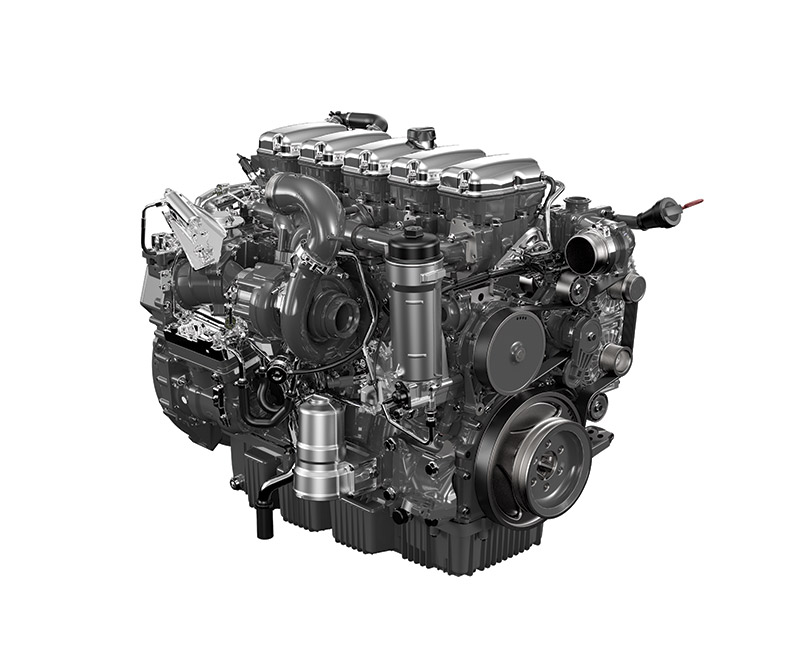

Powertrain technology

The highly dependable, durable, and robust powertrains enable fuel savings of up to 9%.

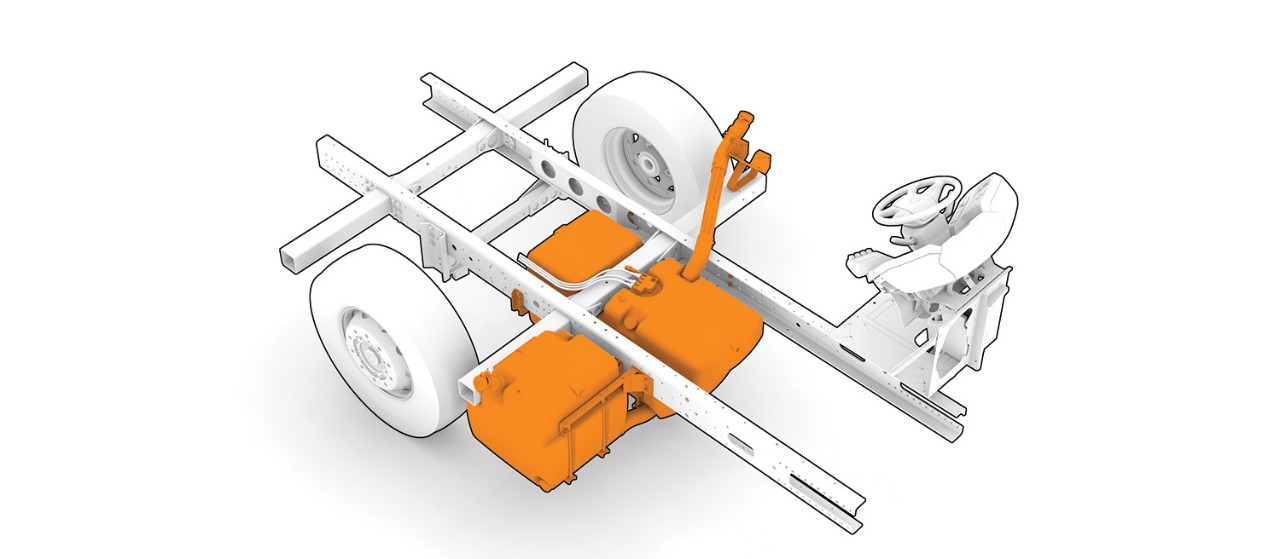

Fuel tanks

Available in several volume options suitable for urban operations. The shape of the 140–360 litre (usable volumes) fuel tanks is optimised for the inner layout to enable seat mounting closer to the wheelhouses. The 450 or 560 litre (usable volumes) tanks can, in high articulation buses, be placed by the centre axle.

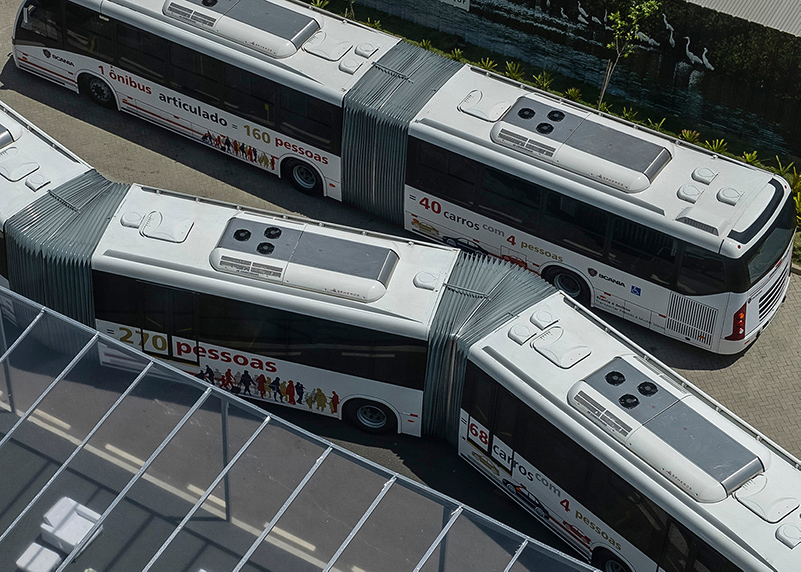

Articulation control

Scania has an industry-leading control system for articulated variants that uses wheelspin control, traction control, articulation damping system and a patented sway control. This prevents instability and jack-knifing while also facilitating handling, manoeuvrability, and safe driving in slippery conditions and during lane changes at high speeds.

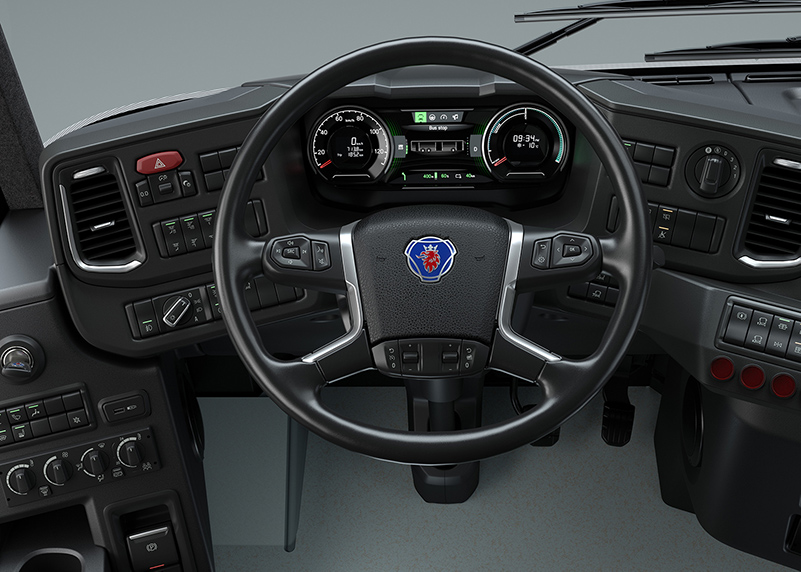

Driver area

Offers excellent ergonomics through. adjustable instrument panel and flexible switch placement . A lower instrument panel increases visibility. The buses have excellent drivability with a great turning radius, advanced driver assistance systems, and improved assisted handling, steering and braking. Also, they offer increased safety, a better climate system and good noise and vibration reduction.

Front suspension technology

Without compromising on passenger capacity, the new independent front suspension offers excellent passenger comfort and enables a wider aisle (900 mm) – resulting in new layout possibilities, increased passenger flow, space and accessibility. The new rigid front suspension also increases passenger capacity and offers good passenger comfort.
