Electric Power Solutions
Hybrid and fully electric solutions
Our in-house developed electric solutions draw on Scania´s long experience, knowledge, and technology from electrifying on-road vehicles, resulting in high system reliability and outstanding performance in a compact design.
This also facilitates builder design, installation, and maintenance. Like all Scania power systems, the electric components are modular and scalable, and thereby suitable for a number of different applications.
All components work seamlessly together and are controlled with a common management system, while standard mechanical interfaces simplify integration with external components. With impeccable interaction between different components to achieve full system integration, electrifying vehicles, vessels, or equipment has never been smoother.
Powering the journey to electrification
Scania is proud to be driving change for a more sustainable tomorrow – a challenge we don’t take lightly. While we believe the future is electric, and lead strong research and development in this area, we also know fully electric solutions aren’t feasible in all applications – yet. That’s why we work just as hard to reduce the environmental impact of our internal combustion engine (ICE) technology, and will do so for as long as those solutions remain in use. Both in standalone operation, as well as in hybrid electric configurations with renewable fuels and green electricity working together to push us forward.
Hybrid electric
Scania´s hybrid electric power systems allow for the engine and e-machine respectively to be run together or as standalone power sources.
The adapted speed range of the electric machine means that a reduction gear can be avoided, minimising energy loss and facilitating equipment design and installation. Altogether, the system enables improved powertrain performance with exceptional torque and response directly from idling, lowered fuel consumption that reduces operational cost and emissions, as well as minimised noise when and where needed.
With the option to also operate fully emissions free when needed, operations in especially emissions sensitive contexts such as marine operations in environmentally protected waterways is made possible.
Fully electric
The high power density electric machine offers maximum torque and response directly from start.
In combination with state-of-the-art batteries and other adjacent components, it eliminates tailpipe emissions and removes powertrain noise. In addition, the low maintenance requirements help reduce operational cost.

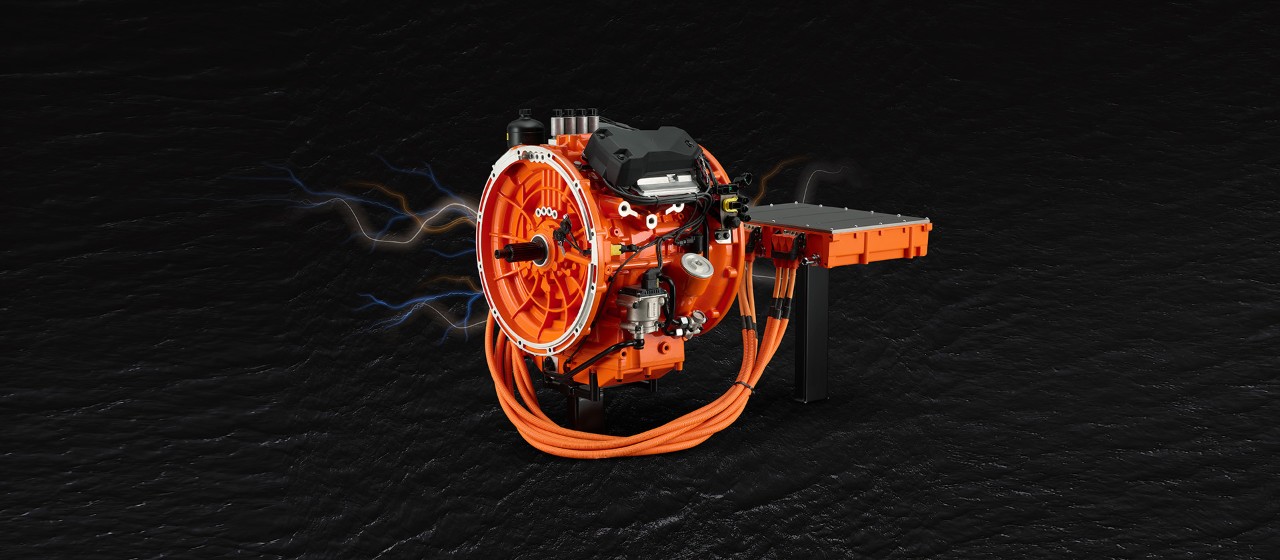

Electric machine
Power*
230 kW continuous @ 2,100 rpm
295 kW peak @ 1,400 rpm
Torque*
1,500 Nm continuous
2,000 Nm peak @ 0–1,400 rpm
Speed range
0-2,900 rpm
System voltage
650 V (DC)
Cooling
Oil cooled
Weight
280 kg (including inverter)
Dimensions (L x W x H)
490 x 610 x 590 mm
*The performance figures are dependent to certain conditions
Battery pack
Configuration CBP MP10
Cell chemistry
Lithium Ion NMC / graphite
Installed energy* 100 kWh
System nominal voltage*
650 VDC
Installed capacity* 157 Ah
C-rate (Discharge/Charge)
Up to 1.6/Up to 1.3
Continuous power (Discharge/Charge)*
160 kW/125 kW
Weight ~620 kg
Dimensions (L x W x H)
832 x 775 x 636 mm
*Performance figures based on beginning of life @SOH 100% and depending on usable energy factor and SOC
Battery Recycling Service
No-cost battery recycling program to ensure minimum climate impact.
A Scania battery that is no longer fit for purpose can always be returned to us at zero additional cost – and we have the logistics flow and recycling partners to ensure it can be handled in a circular way.

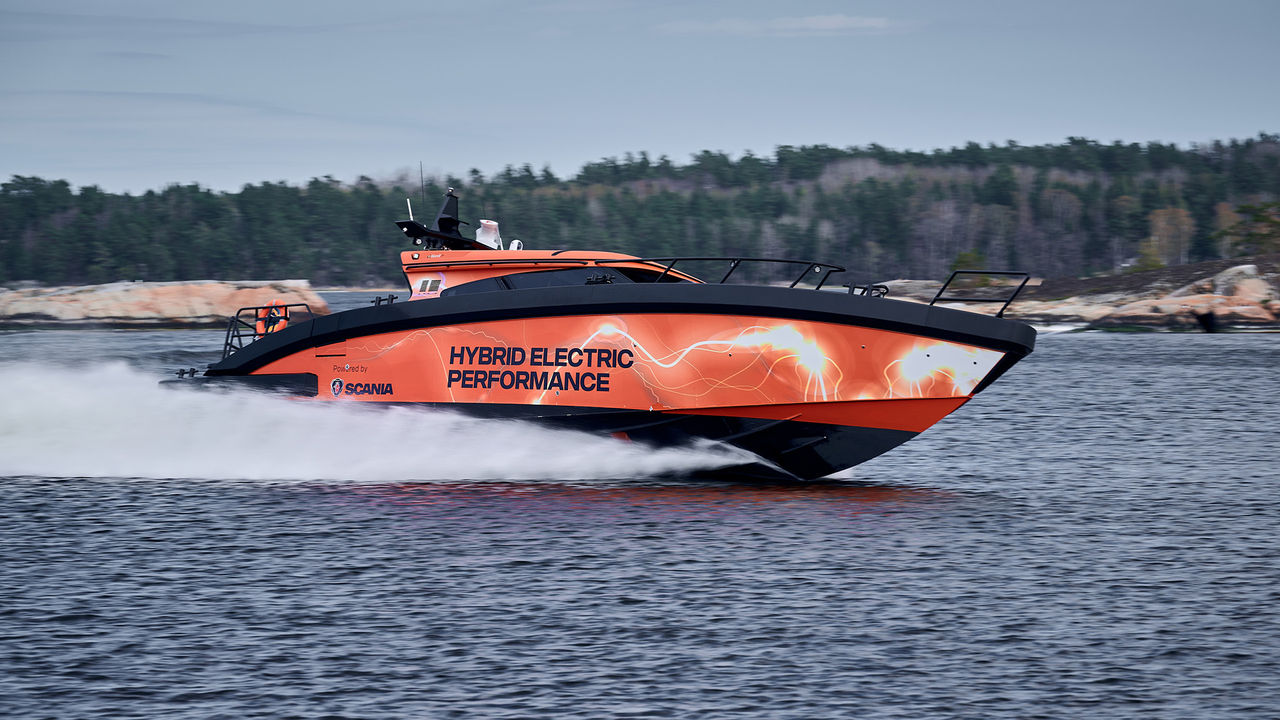

Marell high-speed boat powered by electric Scania solution
Marell Boats founder and owner Patrik Söderholm makes fast aluminium patrol boats running on electricity. The journey of a lifetime all began in his grandfather’s fishing boat.
M/s Rex – a hybrid marine powertrain in action
Hybrid powertrain solutions offer the natural first step for electrifying marine operations – providing the benefits from both combustion engines and e-machines, using well proven hybrid technologies from our road vehicles.
