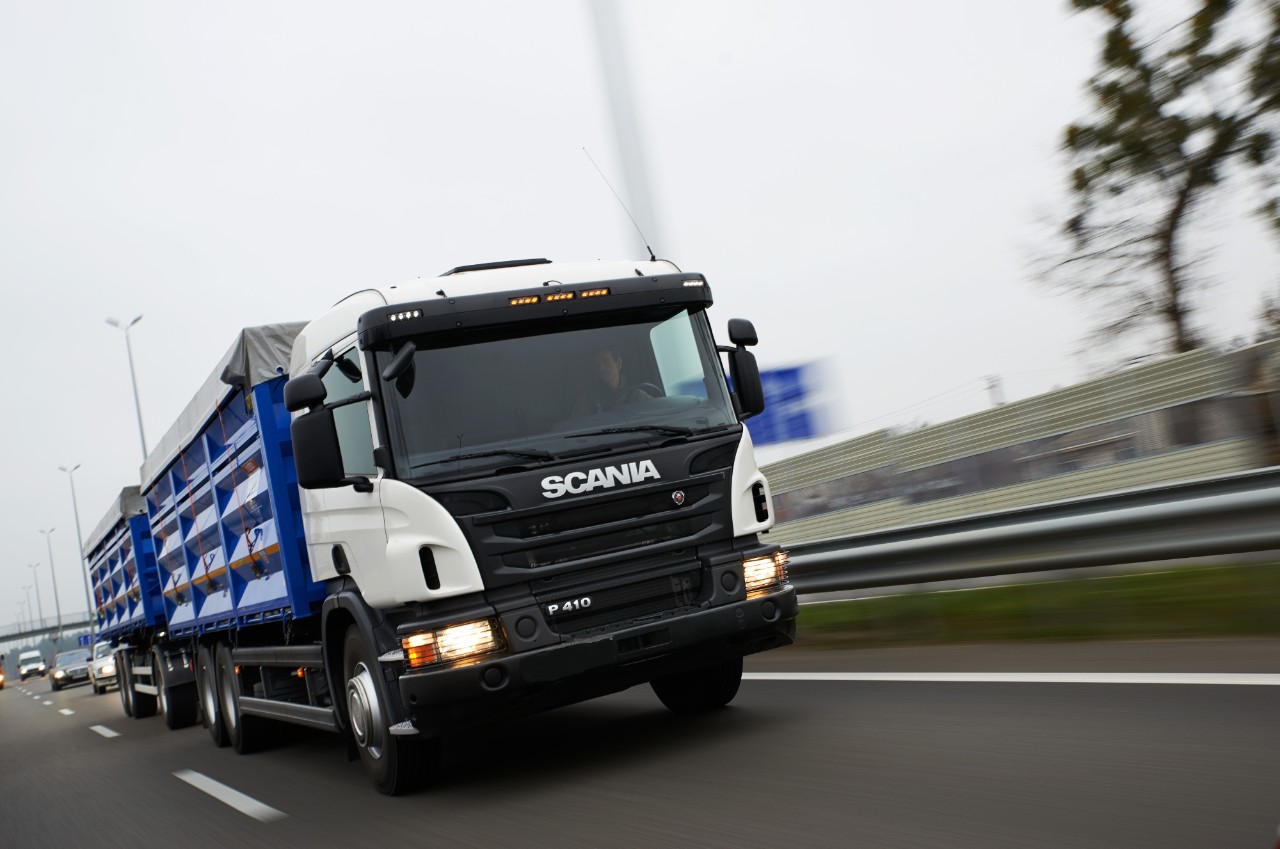

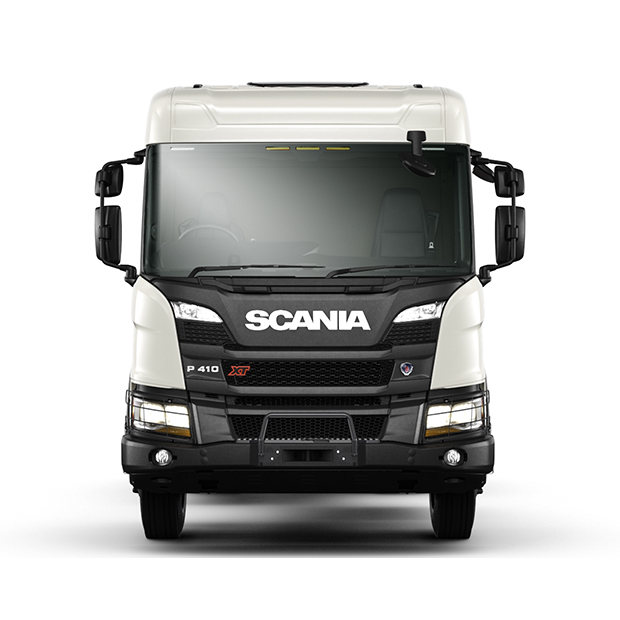

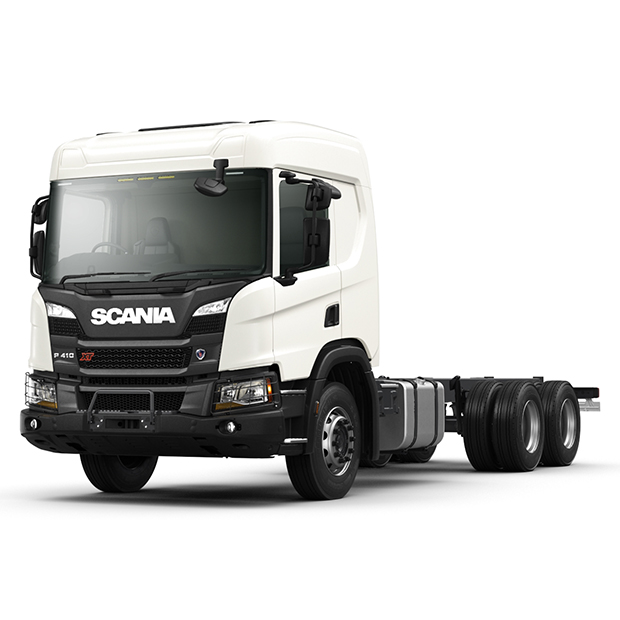

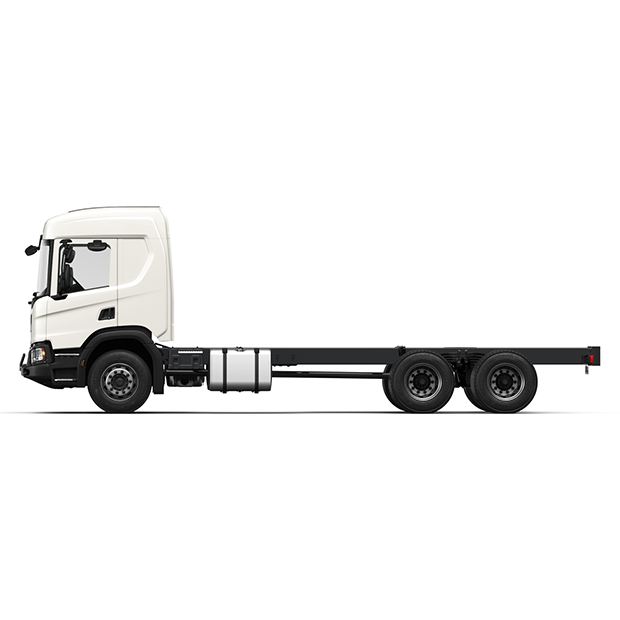

P410 B6x4 HZ Tractor
Long Distance Tractor, 410hp, Euro 3, Opticruise
- Operation: Long distance
- Application: General cargo transport
- Wheel Configuration: 6x4
- Cab Type: CP20N
- Colour: Ivory White
- Emission Class: Euro 3
- Engine Type: DC13 140 410 hp
- Rear Axle Gear Ratio: 3.8
- Fuel Tank: 500 dm3 + 500 dm3 (left + right)
- Tare Weight: 9050 kg
- GVW Technical: 29500 kg
- GTW Technical: 60000 kg
Technical data
- Engine type: DC13 140
- Power at RPM: 410hp/302kW at 1900 RPM
- Torque at RPM: 2050 NM at 1000-1350 RPM
- Gearbox type: GRS905R
- Gearbox speed: 12-speed + 2 crawler 2 reverse
- Rear axle gear ratio: 3.8
*all parameters for reference only
- Chassis height: High
- Axle distance: 5150 mm
- Fuel volume left side: 500 dm3
- Fuel volume right side: 500 dm3
- Suspension system: Leaf front + Air rear
- Hill hold: With
- Battery: 2 x 180 Ah
- Alternator: 100A
- Headlamp type: H7
- Wheel brake: Disc + EBS
- Retarder: 4100Nm and 500kW
- Exhaust brake: 256kW at 2400 RPM
- Trailer hand control braking valve: With
- Tyre dimension front axle: 315/80
- Tyre dimension rear axle: 315/80
*all parameters for reference only
- Roof hatch: Manual
- Wide angle mirror: Driver + passenger side
- Windscreen: Tinted
- Locking type cab: Manual
- Airhorns on the roof: With
- Air deflector kit: Optional
- Heavy duty bumper: With
*all parameters for reference only

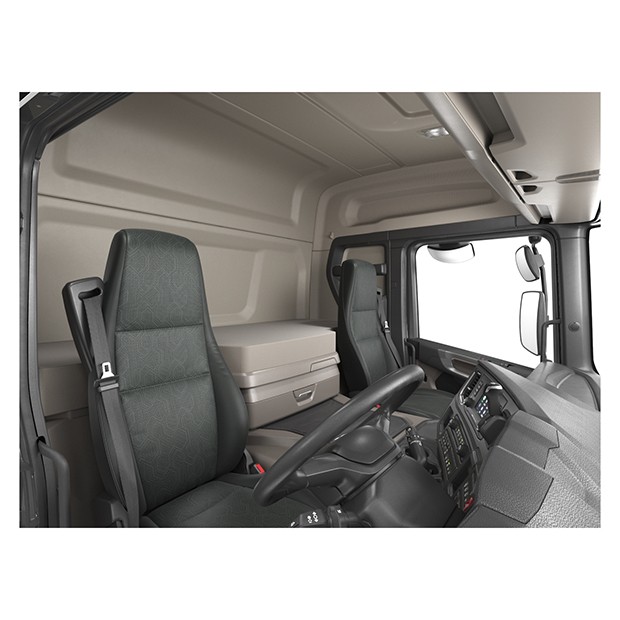

- Seat category, driver side: Air spring medium
- Seat category, passenger side: Static
- Seat upholstery driver side: Woven
- Seat upholstery passenger side: Woven
- Bed: Single
- Bed lower: 800 mm, fixed

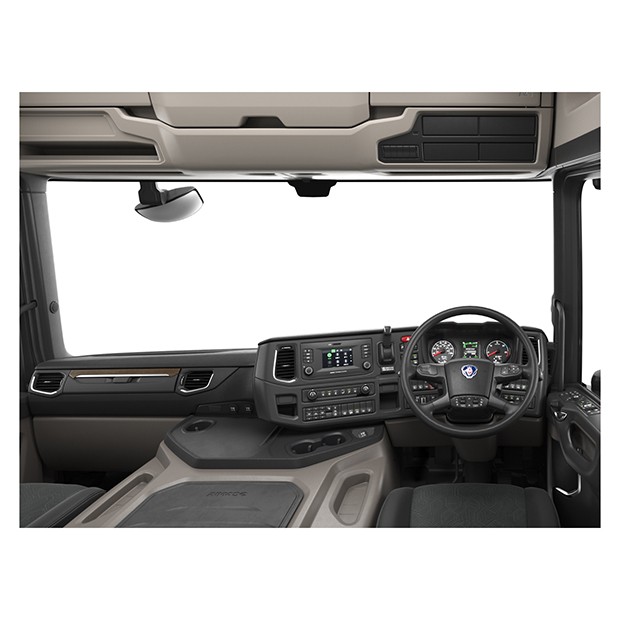

- Steering wheel type: Basic
- Steering wheel: Adjustable tilt +slide
- FMS C300 with driver ID: With
*all parameters for reference only
- Cab colour: Ivory White
- Exterior colour package, front grille: Front grill black
- Fifth wheel category: Fixed, plate-mounted
- Fifth wheel: JOST JSK37CX 185
- Fifth wheel height: 11386 mm
*all parameters for reference only
