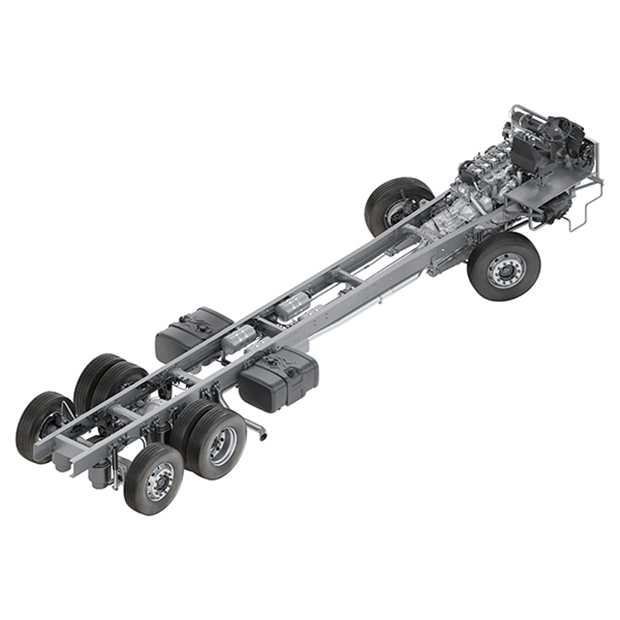

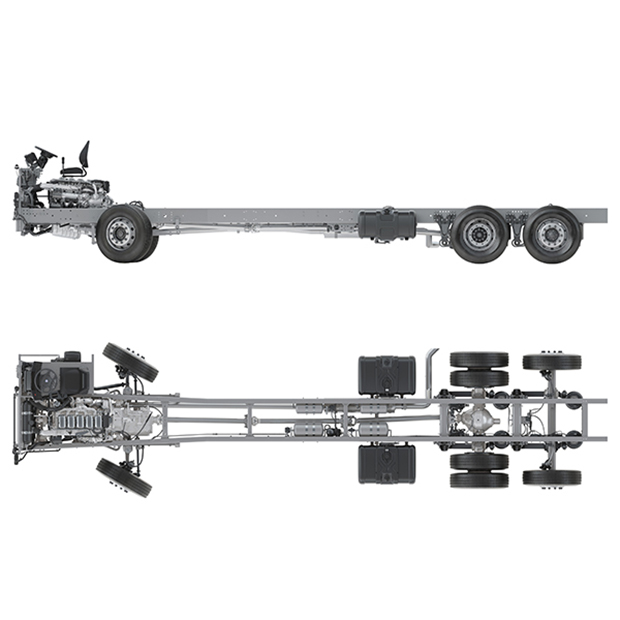

F360 6x2 Bus Chassis
360hp, Euro 3, Opticruise
- Wheel Configuration: 6x2
- Engine: DC13 108 360 hp
- Emission Class: Euro 3
- Rear Axle Gear Ratio: 3.08
- Fuel Tank: 300 dm3 + 300 dm3 (left + right)
Technical data
- Engine type: DC13 108
- Power at RPM: 360hp/265kW at 1900 RPM
- Torque at RPM: 1750 NM at 1000-1350 RPM
- Gearbox type: GR875
- Gearbox speed: 8-speed + 1 reverse
- Rear axle gear ratio: 3.08
- Opticruise: Standard
- Diff lock: Standard
*all parameters for reference only
- Total chassis length: 11620 mm
- Axle distance: 6400 mm
- Intended bus length (max): 12.5 metre
- Fuel volume left side: 300 dm3
- Fuel volume right side: 300 dm3
- Suspension system: Leaf front + air rear; front and rear anti-roll bar; front and rear heavy duty shock absorbers
- Hill hold: With
- Battery: 2 x 140 Ah
- Alternator: 100A
- Wheel brake: Drums + EBS
- Retarder: 3500Nm and 500kW
- Exhaust brake: 263kW at 2400 RPM
- Steering wheel: Standard adjustable (longitudinal and tilt)
- Driver seat: Air spring medium
- Seat capacity: Maximum 67
*all parameters for reference only
- Interlock valve parking brake
- Hill hold
- Electronic brake control
*all parameters for reference only
