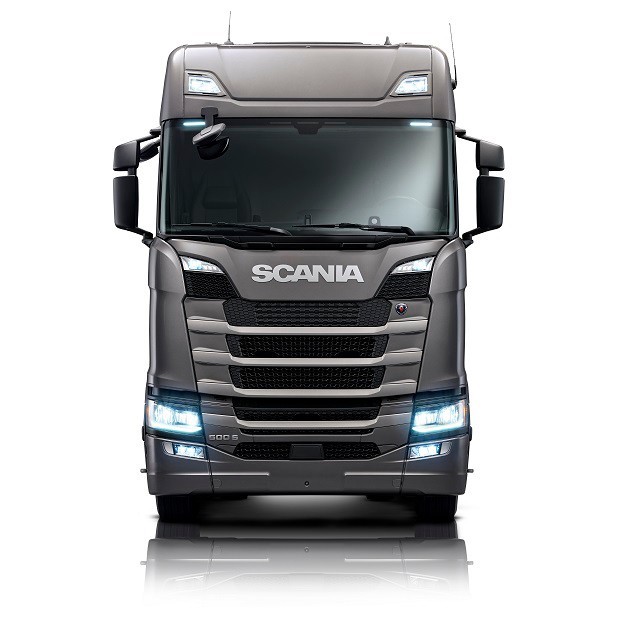

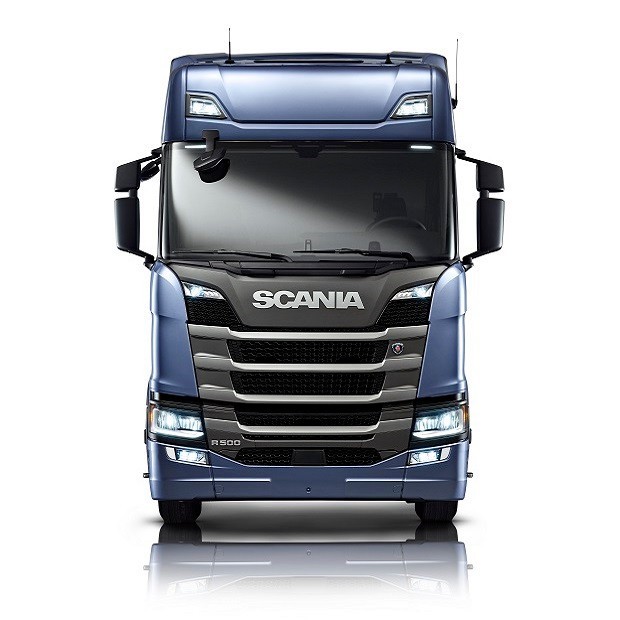

S-series specification

Noble. Robust. Assured.

Empowered engines

Our powerful and fuel-efficient trucks are legendary. The S-series reinforces this even more.The entire S-series engine range delivers SCR-only emissions control, with the leading Scania Twin-SCR system now available on the latest 13-litre and 16-litre engine range – reducing environmental impact and fuel consumption without compromising strength. Gearing is smoother and faster than ever before.

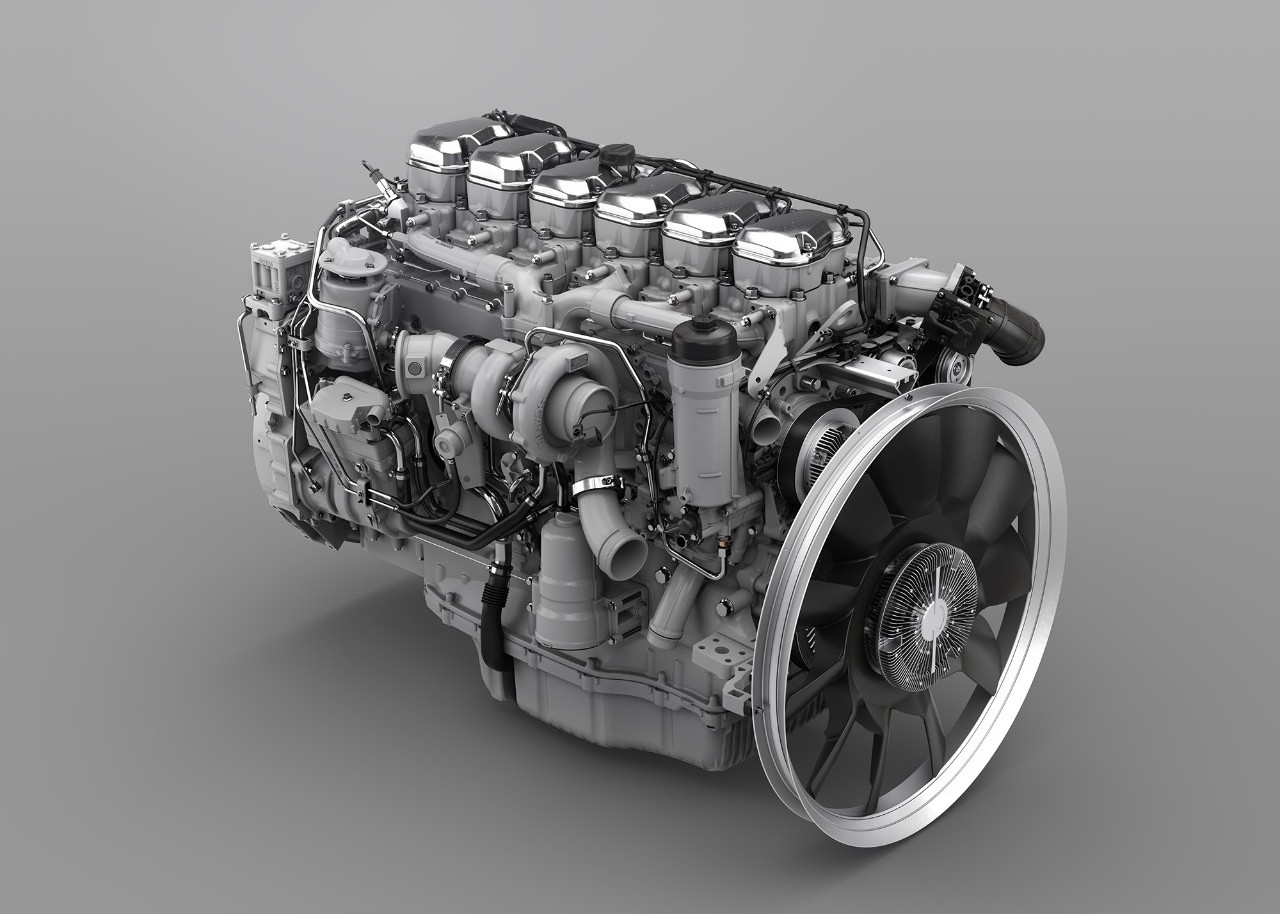

13-litre

The entire Scania Euro 6 engine range is approved to run on up to 100% HVO. Developed according to Scania’s hallmark low-rev philosophy, the Scania Super 13-litre engine gives you industry-leading fuel-efficiency and unrivalled engine performance.

Our 13-litre six-cylinder units have output levels of 370, 410, 450, 500 and 540 hp with SCR technology.

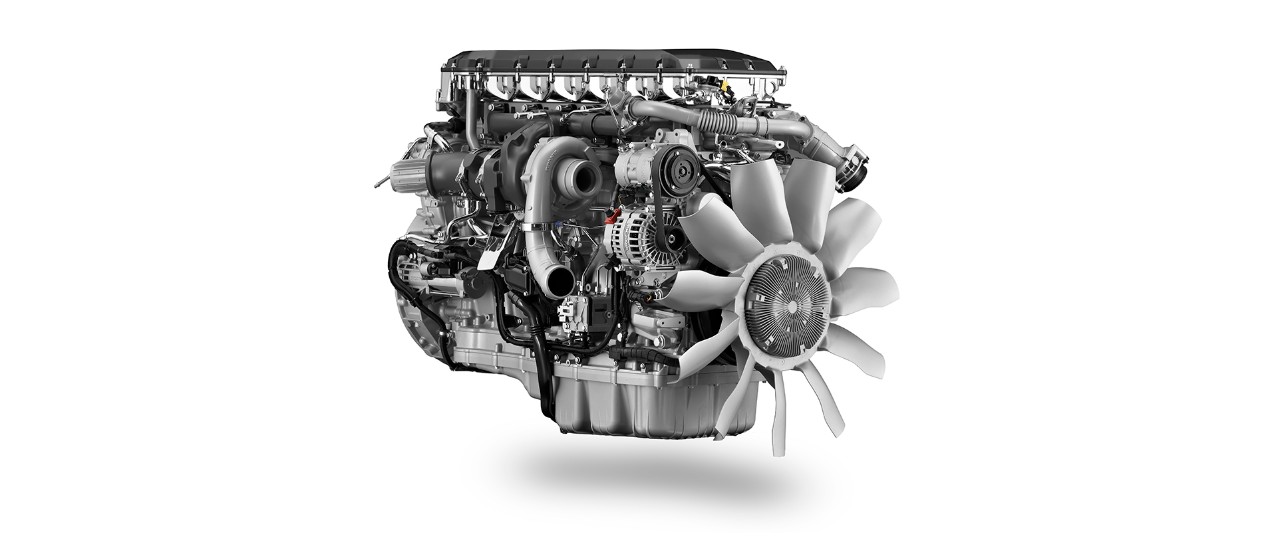

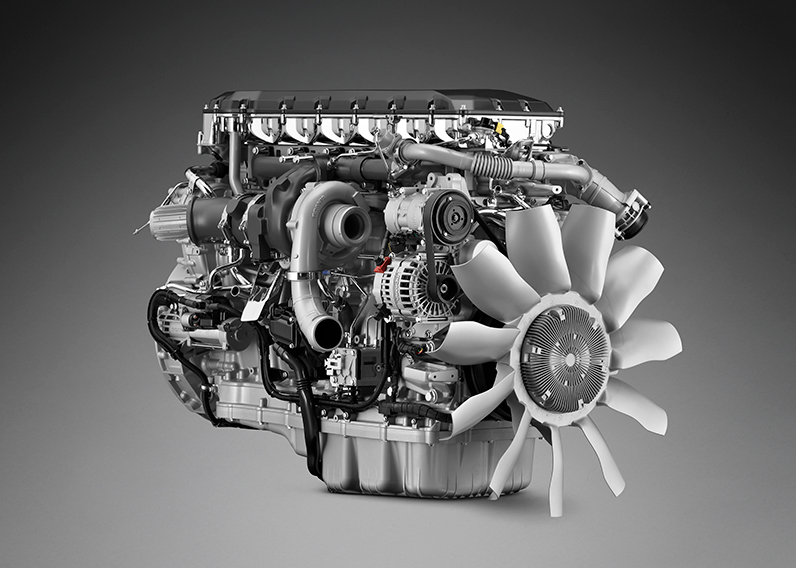

SUPER 13-litre

With groundbreaking powertrain fuel savings of 8%, together with improved power, stamina and robustness, the Scania Super 13-litre engine not only delivers superior uptime and operational performance but is also ready to meet even the toughest emissions regulations, both today and tomorrow.

Our Super 13-litre six-cylinder engines have outputs levels of 420, 460, 500 and 560 hp.

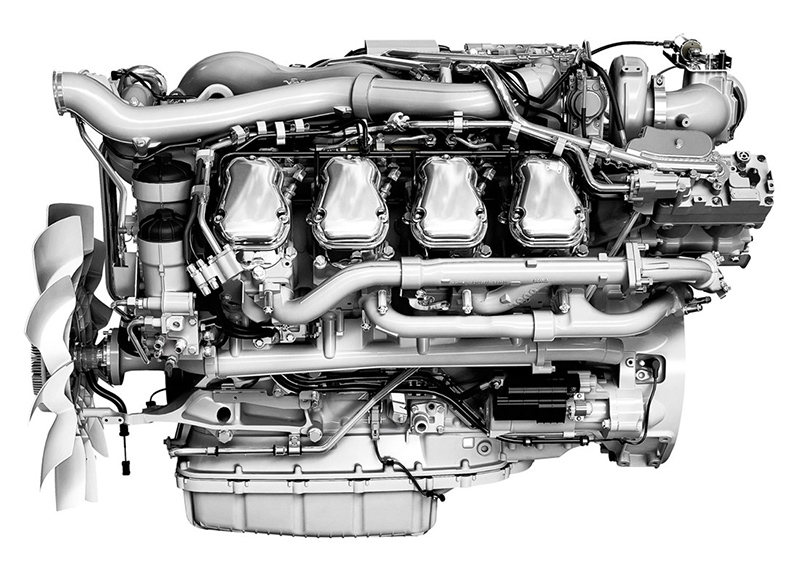

16-litre

All Euro 6 engines are approved to run on up to 100% HVO. We have reduced their fuel consumption to make your costs lower still. But we won’t stop there. We’ll keeping working to improve performance so your business benefits even more.

The Scania V8s are available with power ratings of 530, 590, 660 and 770hp.

Fuelled by evolution

Scania engines are known for their fuel efficiency. The groundbreaking Scania Super 13-litre engine takes that reputation to new heights. With improved engine performance and leading emissions control through the Scania Twin-SCR system, the Scania Super 13-litre engine sets a new industry standard for brake thermal efficiency. This contributes to unrivalled powertrain fuel savings of 8%.

DUAL EMISSIONS CONTROL

The leading Scania Twin-SCR system, with dual AdBlue dosing, ensures a continuously higher reduction of exhaust emissions across a wide range of operations and is ready to meet even the toughest emissions regulations – both today and tomorrow.

GROUNDBREAKING PERFORMANCE

Dual overhead camshafts are introduced to enhance gas exchange and deliver unrivalled performance. Together with significant improvements to combustion performance, lubrication and cooling, and turbocharger efficiency, the Scania Super 13-litre sets groundbreaking new levels of brake thermal efficiency.

POWERFUL ENGINE BRAKING

Through an optional compression release brake system, the Scania Super 13-litre engine introduces high-performance, auxiliary engine braking capacity up to 350 kW – ensuring a smoother and safer drive across challenging terrain.

Power your profitability

Scania delivers a wide range of engines which are compatible with diesel and alternative fuels, so you can find your perfect power to keep your long-distance operations up to the task, mile after mile. This includes the new Scania Super 13-litre engine which introduces a new 560 hp performance step, in addition to groundbreaking combined powertrain fuel savings of 8%.

Euro 6
Euro 5
Euro 4

Output	Torque	Fuel	Emission technology	Engine PTO
770 Hp	3700 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800 Nm
660 Hp	3300 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
650 Hp	3300 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
590 Hp	3050 Nm	Biodiesel/Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
580 Hp	3000 Nm	Biodiesel/Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
530 hp	2800 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm
520 hp	2700 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	800Nm

Output	Torque	Fuel	Emission technology	Engine PTO
560 Hp	2800 Nm	Diesel/HVO	Twin SCR	Up to 1000Nm
500 Hp	2650 Nm	Diesel/HVO/FAME	Twin SCR	Up to 1000Nm
460 Hp	2500 Nm	Diesel/HVO/FAME	Twin SCR	Up to 1000Nm
420 Hp	2300 Nm	Diesel/HVO	Twin SCR	Up to 1000Nm

Output	Torque	Fuel	Emission technology	Engine PTO
540 Hp	2700 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	600 Nm
500 Hp	2550 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
450 Hp	2350 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
410 Hp	2150 Nm	Diesel/HVO/Biodiesel/Ethanol	Selective catalytic reduction (SCR)	600 Nm
370 Hp	1900 Nm	Diesel/HVO	Selective catalytic reduction (SCR)	600 Nm

Output	Torque	Fuel	Emission technology	Engine PTO
620 Hp	3000 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	800 Nm
520 Hp	2700 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	800Nm

Output	Torque	Fuel	Emission technology	Engine PTO
540 Hp	2700 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
500 Hp	2550 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
450 Hp	2350 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
440 Hp	2300 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
410 Hp	2150 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
380 Hp	1975 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm

Output	Torque	Fuel	Emission technology	Engine PTO
620 Hp	3000 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	800 Nm
520 Hp	2700 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	800Nm

Output	Torque	Fuel	Emission technology	Engine PTO
500 Hp	2550 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
450 Hp	2350 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
440 Hp	2300 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
410 Hp	2150 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm
380 Hp	1975 Nm	Diesel/HVO/Biodiesel	Selective catalytic reduction (SCR)	600 Nm

Get the right gearbox

Our comprehensive gearbox range can be adapted to all types of transport operations to deliver the full range of power across your Scania powertrain. Offering improved driveability, Scania’s gearboxes can be fitted with the high-performance Scania Retarder.

The Scania Opticruise G25 and G33 set the highest industry standard for gearbox performance. Together with improved overall robustness, the Scania Opticruise remains the leading choice for sustainable, fuel-efficient transport operations.

Range-change gearboxes
Range-splitter gearboxes
Opticruise gearbox

8-speed

The virtue of this gearbox lies in its simplicity. Rugged and compact, there are no crawler ratios and the smooth, positive action makes gearchanging easy. Options include Scania Opticruise, Scania Retarder and a selection of power take-offs.

8+1-speed

This gearbox offers similar advantages, together with an extra crawler ratio. Based on a 4-speed box, plus a planetary section, its strength is more than a match for the high-torque output of any Scania inline engine. Options include Scania Retarder and a selection of power take-offs.

12-speed

This gearbox is built to tackle the most challenging terrain, making it the perfect choice for demanding long-haulage. Its closely stepped ratios combine light weight with ease of driving with exceptional operating economy.

12+2-speed

For applications that demand extra low-speed pulling power, this gearbox has two extra crawler ratios. Designed for optimised economy, it has proved highly successful for both long-distance and regional distribution, as well as heavy construction applications. The overdrive versions offer higher torque capacity, plus overdrive for low and economic cruising revs. Scania Opticruise and Scania Retarder, as well as a selection of power take-offs, are available for all range-splitter gearboxes.

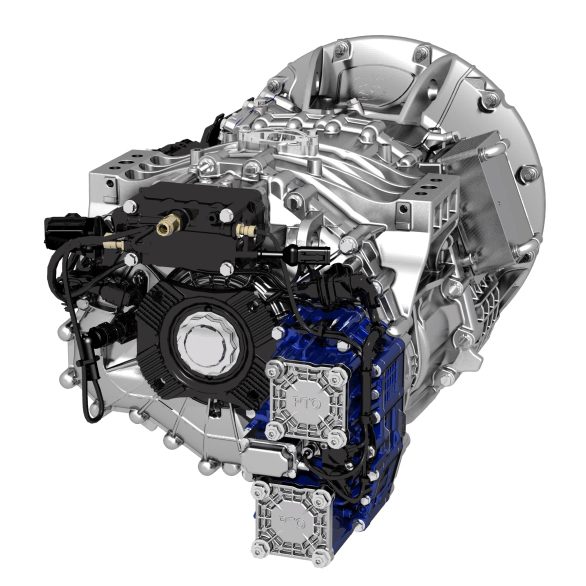

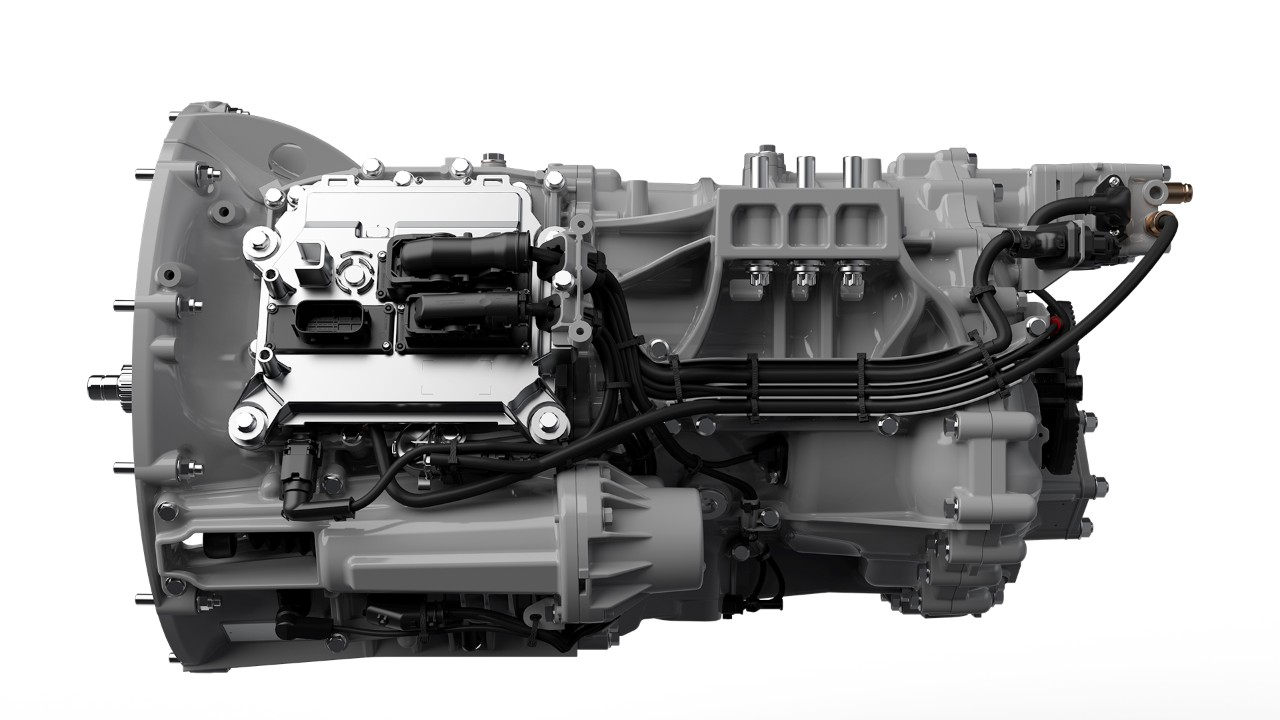

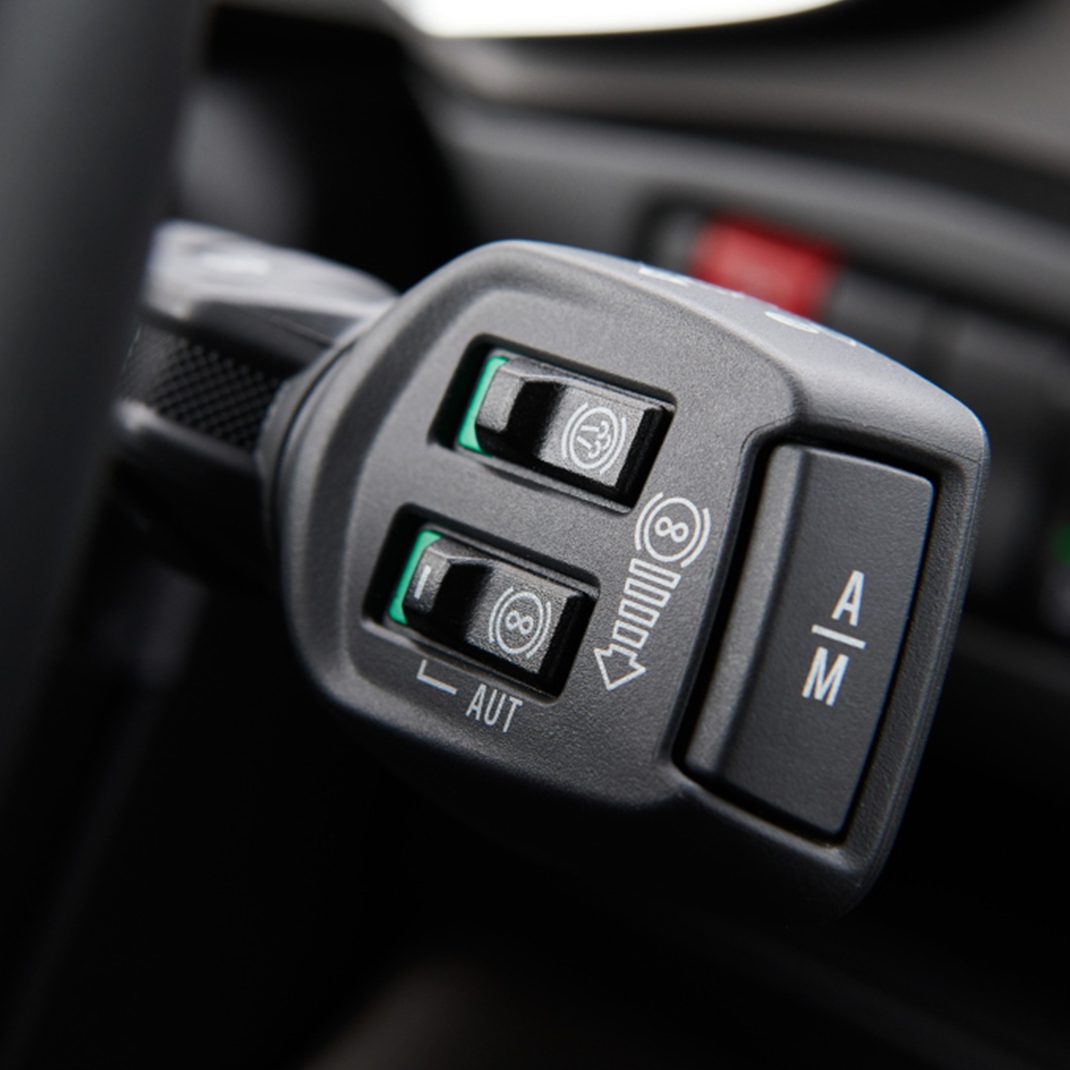

Scania’s Opticruise gearbox platform, available in two performance steps G25 and G33, delivers improved and speedy gearshifting in combination with excellent comfort and fuel savings of one percent.

The Opticruise’s fully automated clutch control, which allows for precision manoeuvring and smoother gear performance, is complemented by a wider, more efficient 14-gear spread, and new technologies such as variable oil volume and oil spray function to improve gear lubrication and reduce internal losses.

The platform also introduces a new compact, geometric design, as well as low weight cast aluminium housing, resulting in significantly lower sound levels and a reduced component weight of up to 75 kilograms. Additionally, the Opticruise delivers increased uptime and fewer maintenance stops through an extended oil change interval. All this to ensure that your total operating economy is optimised.

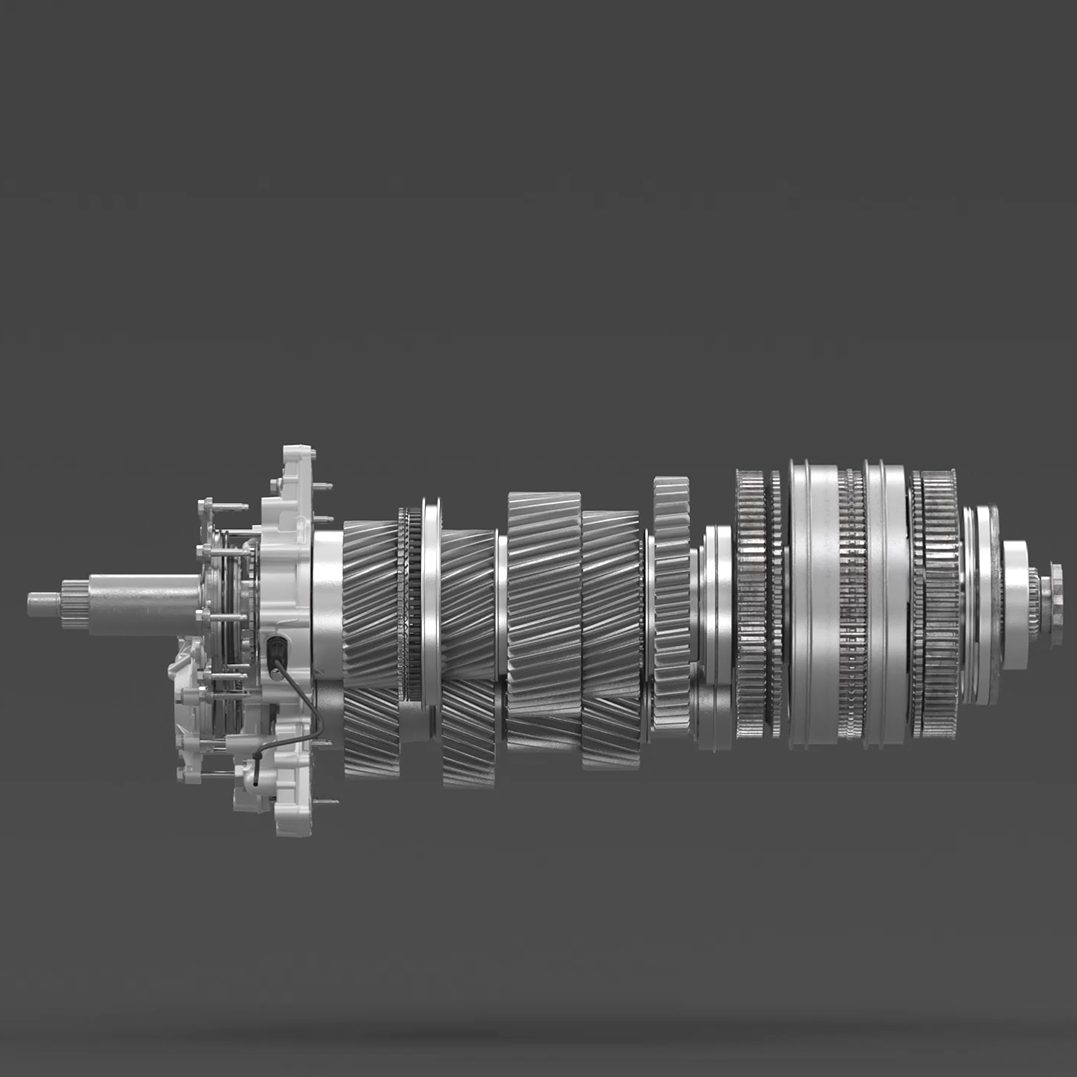

Driveability

Better driveability is achieved with a wider gear ratio spread, which includes super crawler and overdrive, that match Scania’s low rev engine philosophy.

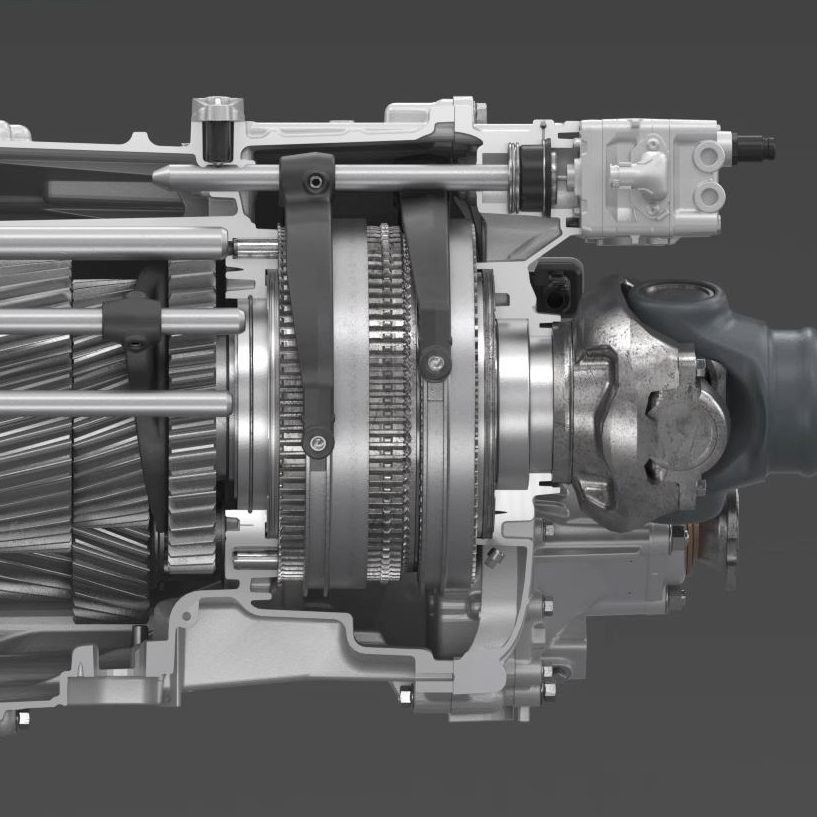

Reversing

Instead of a reversing gear, a planetary gear is used for reversing. This solution enables having eight gears for going in reverse at speeds up to 30 km/h. (This is useful when, for instance, tipper trucks need to reverse for long distances.)

Retarder

The retarder on the G33 has also been updated and improved and can now deliver 4700 Nm torque at a propeller shaft speed below 600 rpm.

PTO

PTO - With the Scania Opticruise gearbox, a new PTO programme with nine different performance steps is introduced. Higher torque and gear ratio improves the overall performance of bodywork equipment. Lower noise levels and reduced fuel consumption is the result of higher gear ratio, which allows lower engine speeds.

The new Scania Opticruise gearbox G33 is available for all V8 engines up to 660 hp as well as the high-output 13-litre 500 and 540 hp engines.

Rear axle gears

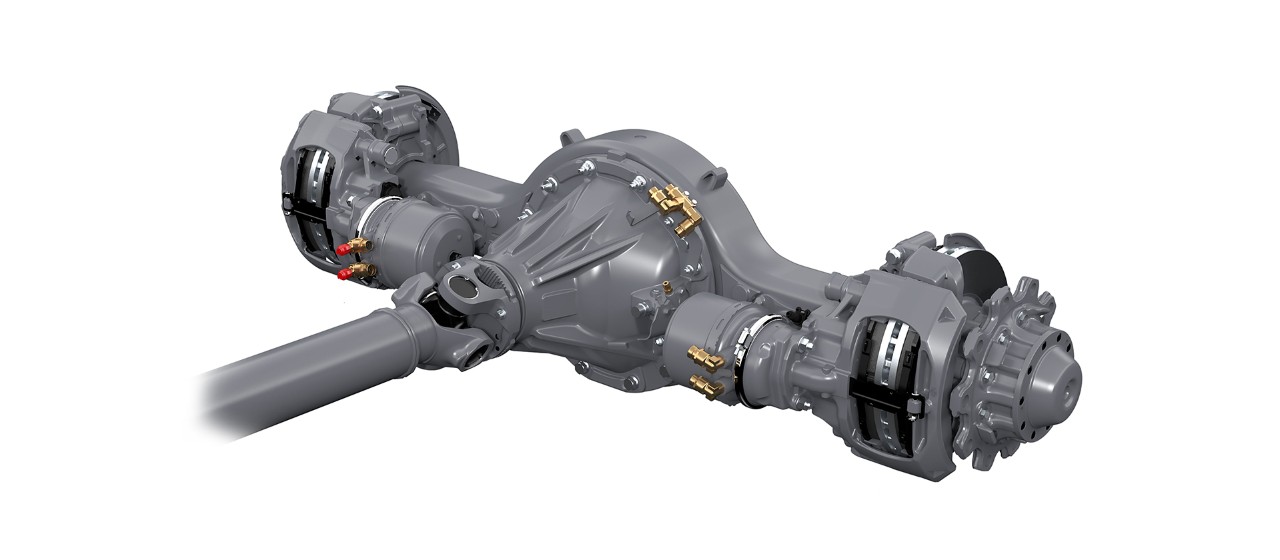

Scania offers a range of single reduction drive axles. Hub reduction is also available in two strengths. The robust and lightweight R756 introduces faster and more efficient gearing, setting new standards for rear axle performance and delivering the improved efficiency range of the Scania powertrain.

Single driven hub reduction

The single driven hub reduction axles are offered for the operations where startability, ground clearance and high gross train weights are favourable. They manage gross vehicle and train weights up to 80 tonnes with gear ratios from 3.80 up to 7.18.

Single driven single reduction

Our gears for single reduction have low complexity and high efficiency and can master gross vehicle and train weights up to 78 tonnes with a wide range of gear ratios from 1.95 up to 5.57.

TANDEM DRIVEN SINGLE REDUCTION

Tandem driven single reduction is offered for operations where you require traction together with optimal fuel efficiency. The RB662 + R660 tandem gear masters gross vehicle and train weights up to 80 tonnes with gear ratios from 2.92 up to 4.88.

Tandem driven single hub reduction

Our broad tandem driven hub reduction axles are robust and durable and offers great startability and ground clearance. It masters extremely high gross vehicles and train weights to up to 210 tonnes with gear ratios from 3.52 up to 7.63.

WIDER GEAR RATIO

The R756 offers a wider gear ratio from 1.95 to 4.11 and is made to master a wide range of vehicle operations up to 53 tonnes GTW.Info point 2 (+ on image)

UNRIVALLED UPTIME

The R756 is engineered to deliver extended oil change intervals and an increased component lifetime.

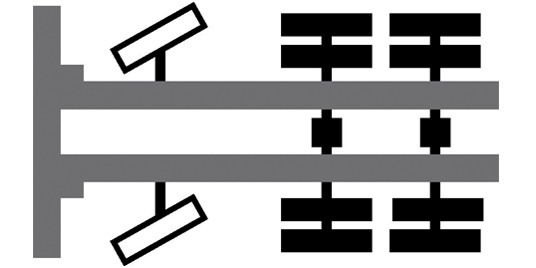

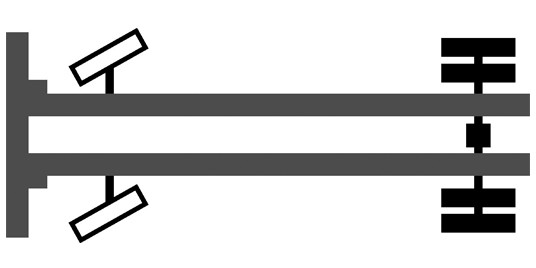

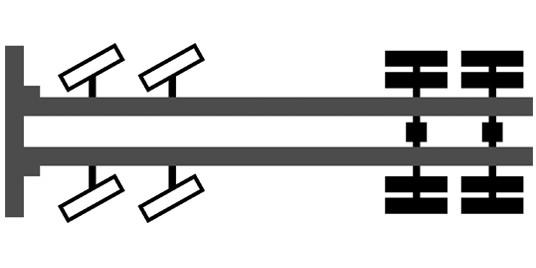

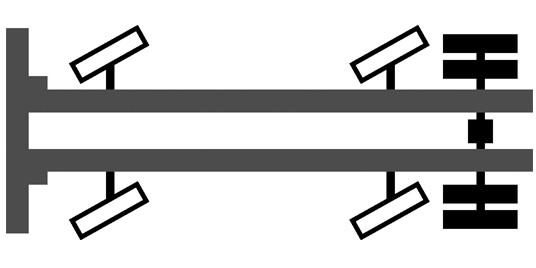

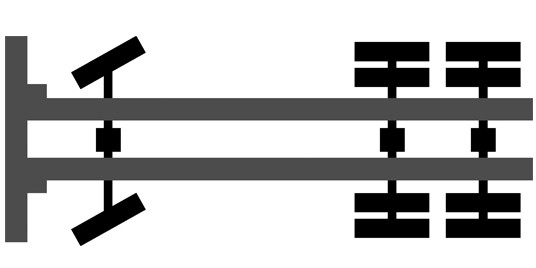

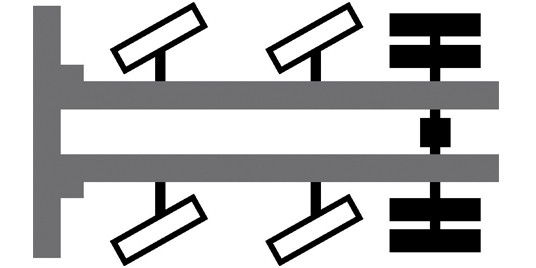

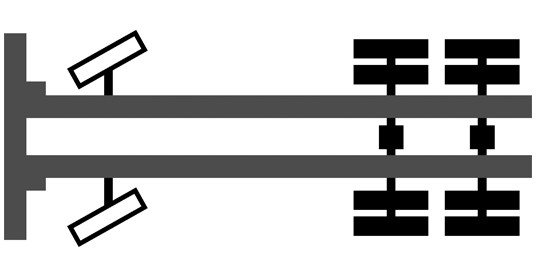

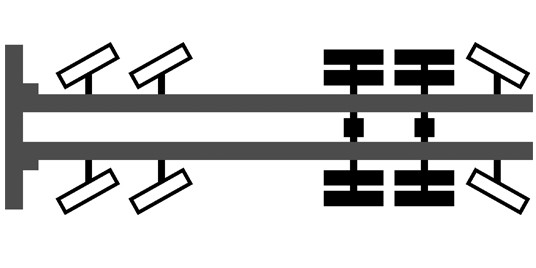

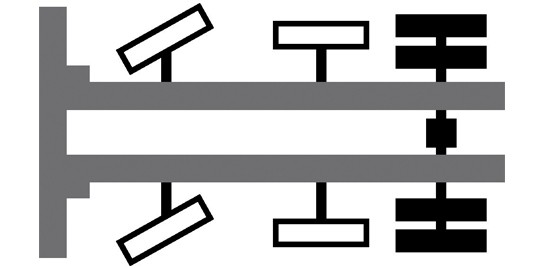

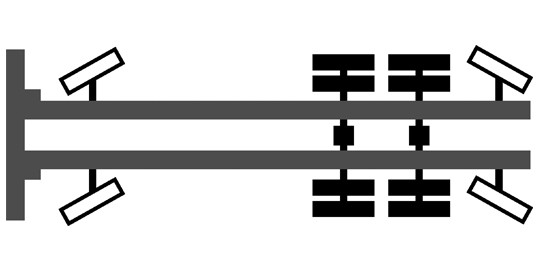

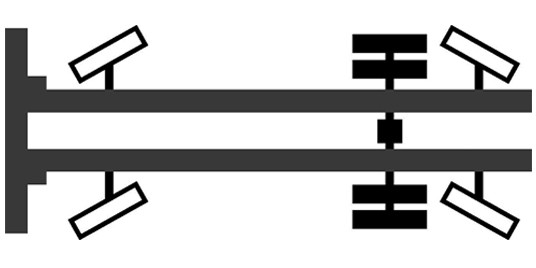

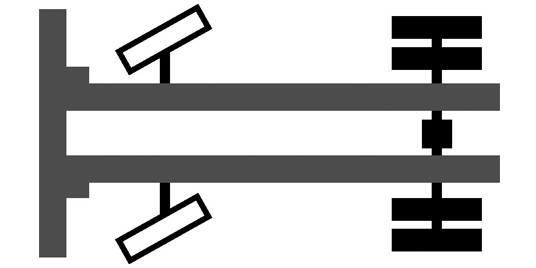

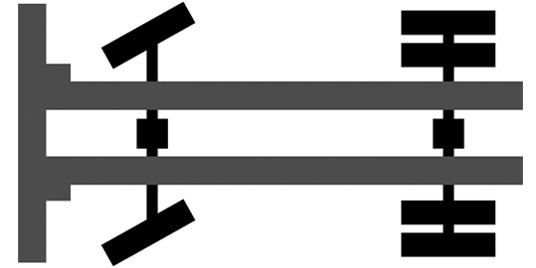

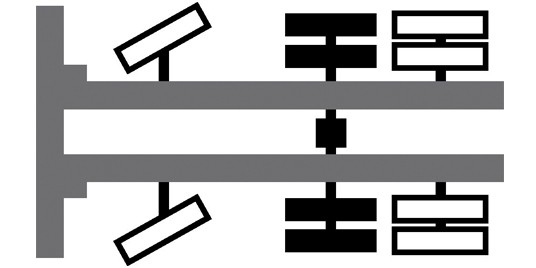

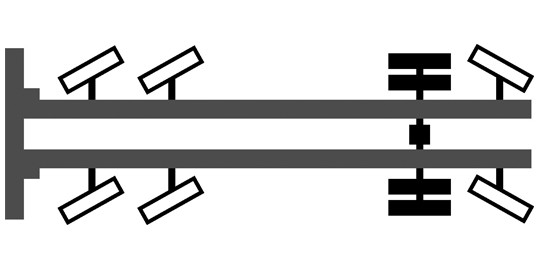

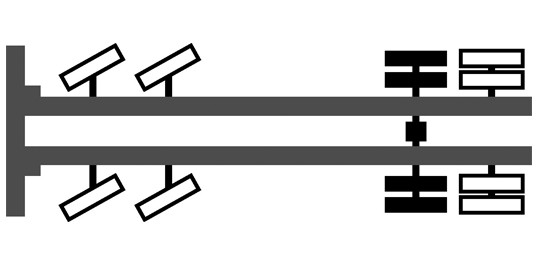

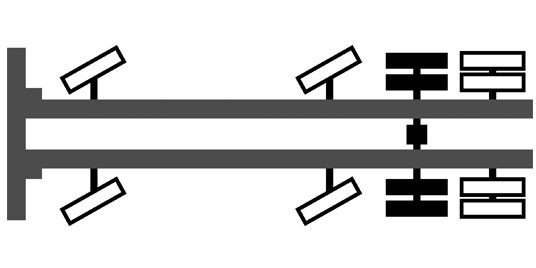

Axle configurations

Front, rear, fixed and steered tag axles – Scania can match the requirements of any application. The S-series can be teamed with a wide range of chassis configurations with different heights.
