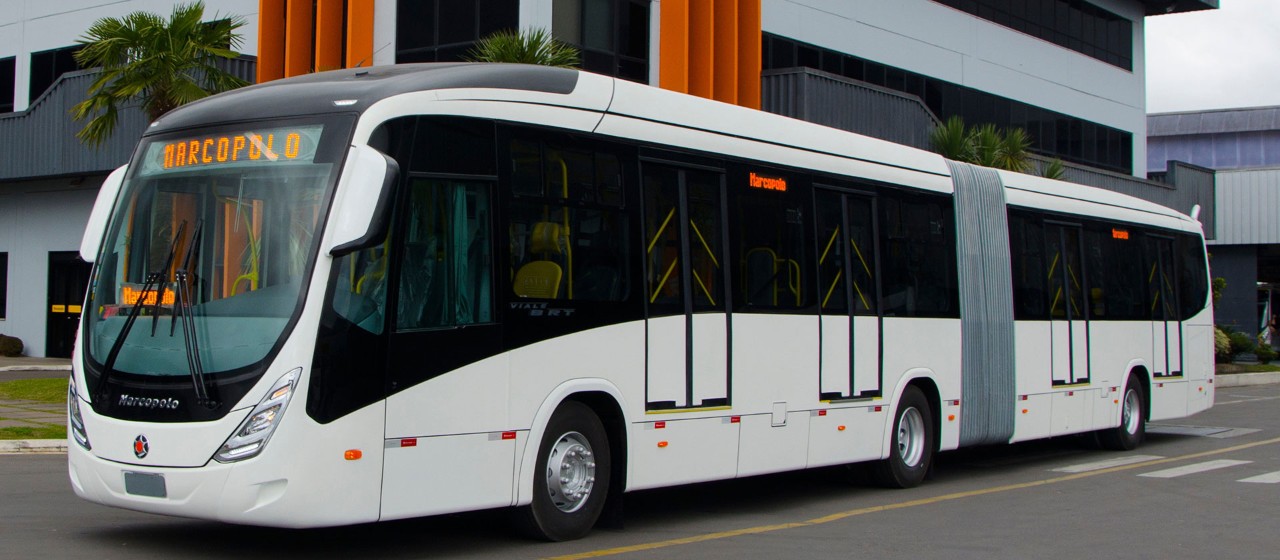

Scania Marcopolo
Viale and Torino
Powertrains
The Scania Marcopolo provides a wide range of energy efficient and reliable powertrains optimised for inner city and suburban traffic.
| Volume | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 280 Hp (206kW) | 1400 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
| 9-litre | 320 Hp (235 kW) | 1600 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
| 9-litre | 360 Hp (265 kW) | 1700 Nm | Selective catalytic reduction (SCR) | Biodiesel, HVO, Diesel |
Fuel capacity (usable volumes): Fuel capacity: 140-360 litres | ||||
| Volume | Output | Torque | Emission Control | Fuel options |
|---|---|---|---|---|
| 9-litre | 280 Hp (206 kW) | 1350 Nm | Exhaust gas recirculation (EGR) | Biogas, Natural gas |
| 9-litre | 340 Hp (250 kW) | 1600 Nm | Exhaust gas recirculation (EGR) | Biogas, Natural gas |
Fuel capacity (usable volumes): 1260-1875 litres
6-speed fully automatic gearbox (ZF EcoLife 2) 12-speed manual gearbox with Scania Opticruise and retarder | ||||

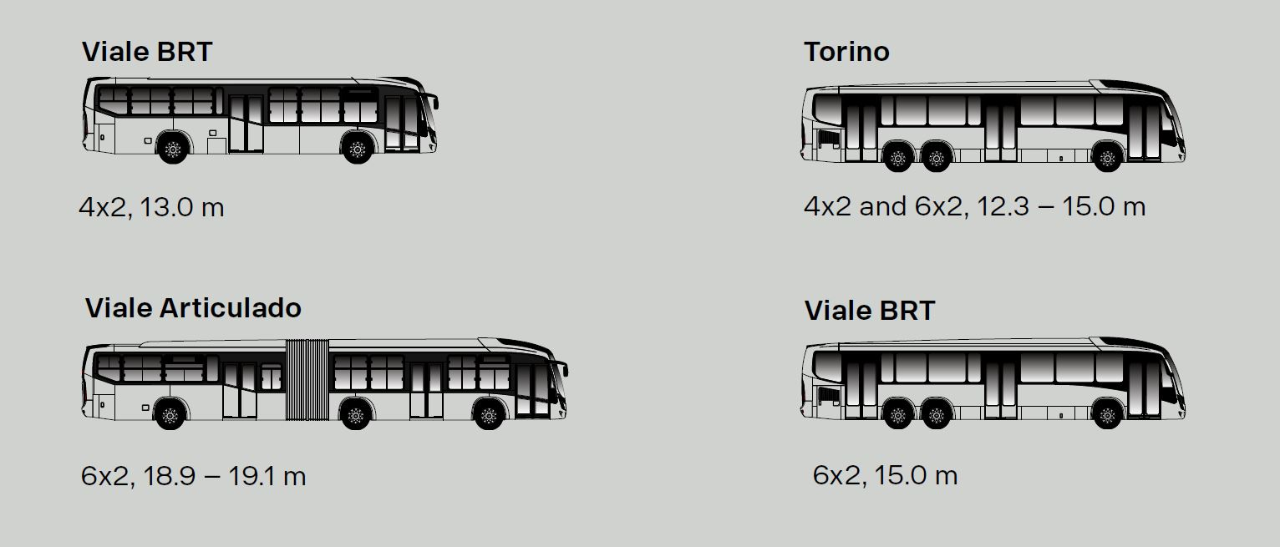

Axles and lengths
The Scania Marcopolo range is available in several variants and options for door configurations, enabling it to meet different demands in terms of passenger capacity and flow.
HEights
The heights may vary depending on market, powertrain and configuration.
Floor level
The low entry point and flat floor up to the central doors area offer the same accessibility as for the low floor version in the front and middle sections. In the rear section a higher floor creates better view for passengers. The widened aisle contributes to increased accessibility, comfort and passenger flow.
Design features
Our buses are produced in a long-standing partnership between Scania and Marcopolo. Everything from the chassis construction to the powertrain and the body has been developed and thoroughly tested with a focus on reliability and performance without compromising on energy efficiency.

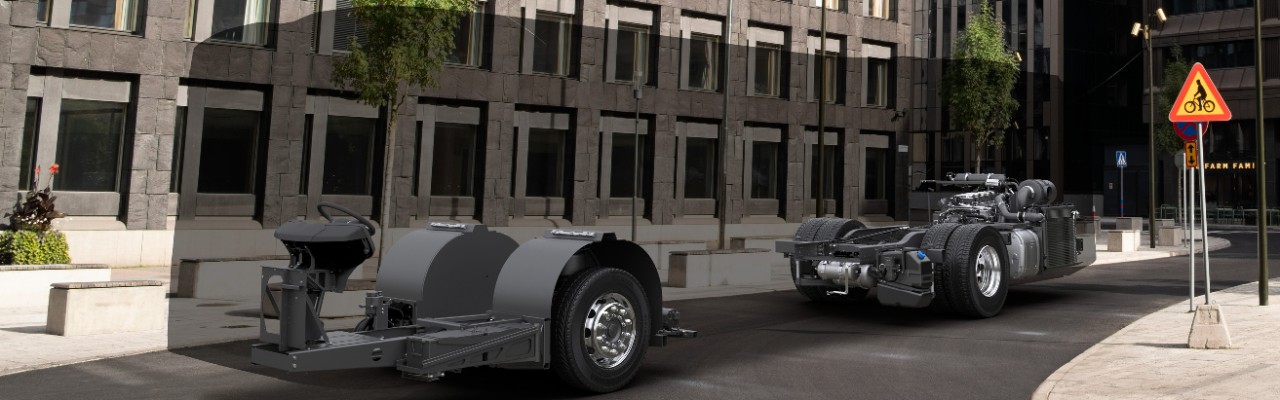

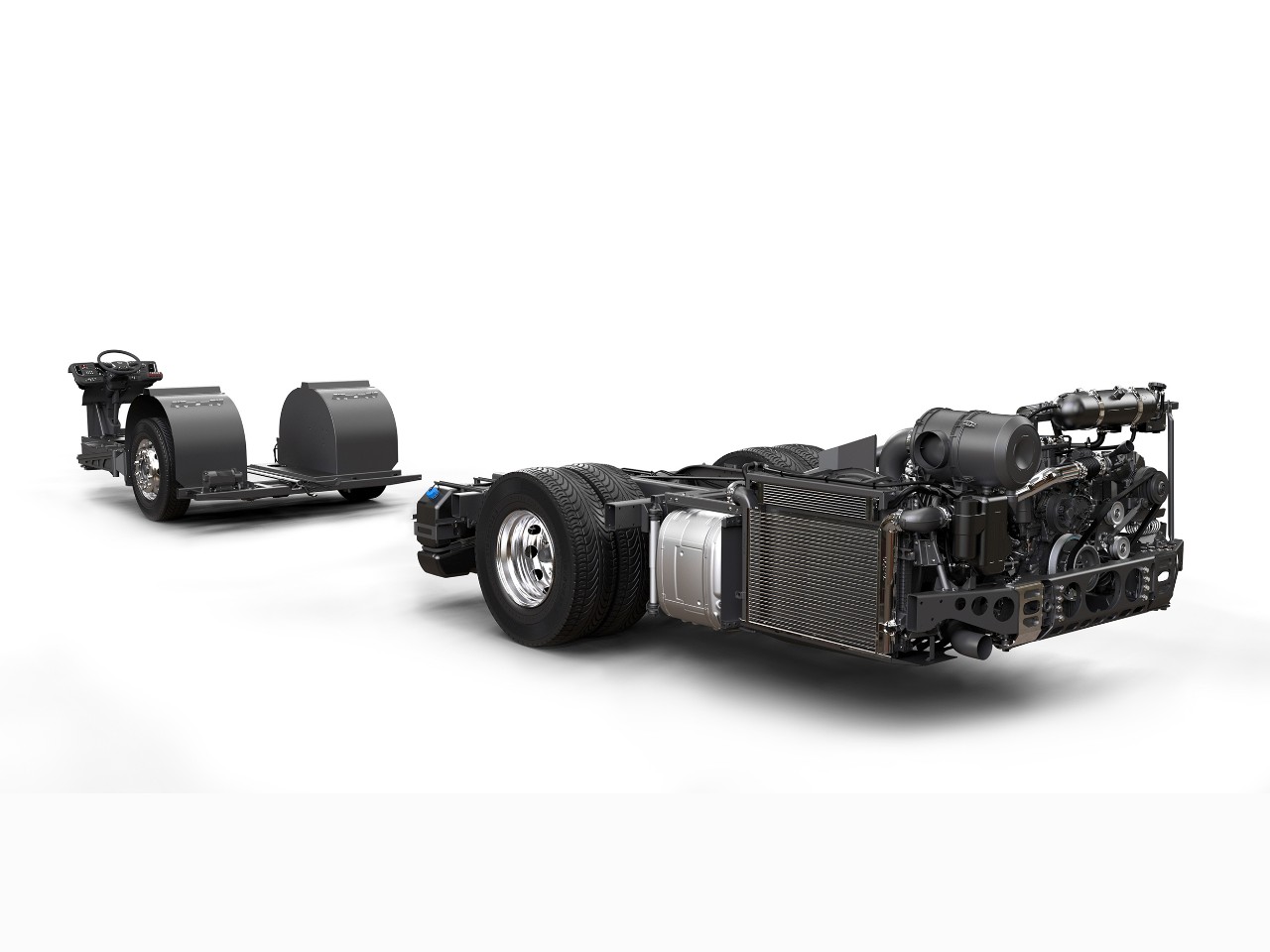

Chassis frame
The strengthened front axle for low entry K-chassis with individual front suspension, in combination with the ability to now use wider tyres, means that load capacity is increased from 7.1 to 8.2 tonnes. For high floor K-chassis with individual front suspension, the load capacity is increased from 7.5 to 8.0 tonnes. This allows higher passenger capacity and optimised weight distribution between the front and rear axles – especially important for gas vehicles.

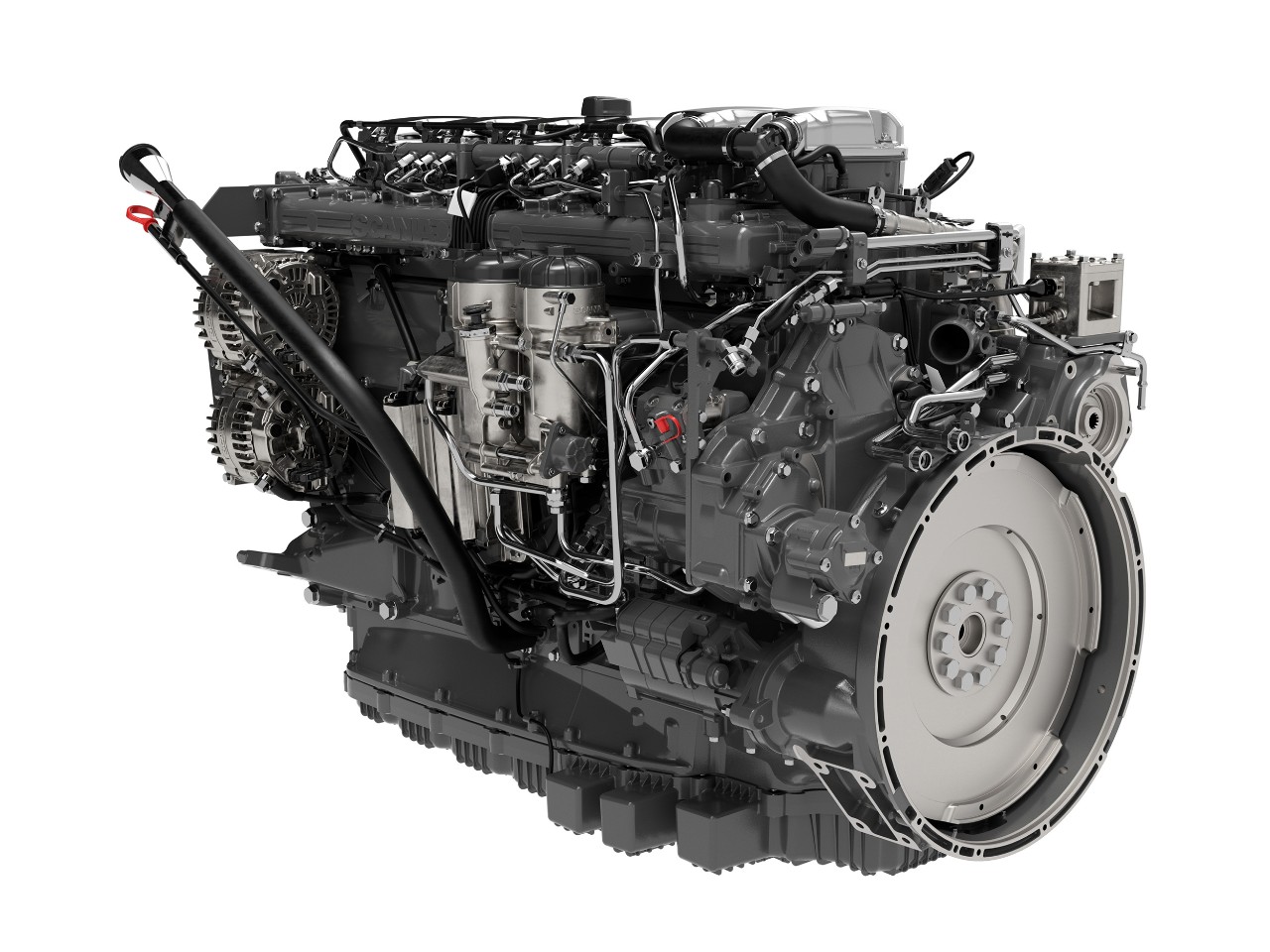

Powertrain technology
The highly dependable, durable, and robust powertrains enable fuel savings of up to 9%.

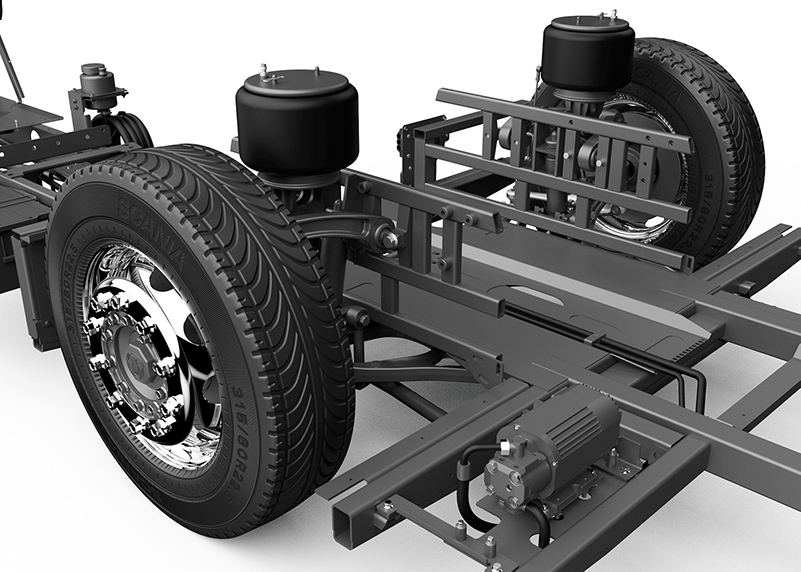

Front suspension technology
Without compromising on passenger capacity, the new independent front suspension on K-chassis low entry, offers excellent passenger comfort and enables a wider aisle (900 mm) – resulting in new layout possibilities, increased passenger flow, space and accessibility. The new rigid front suspension also increases passenger capacity and offers good passenger comfort.
Electric system

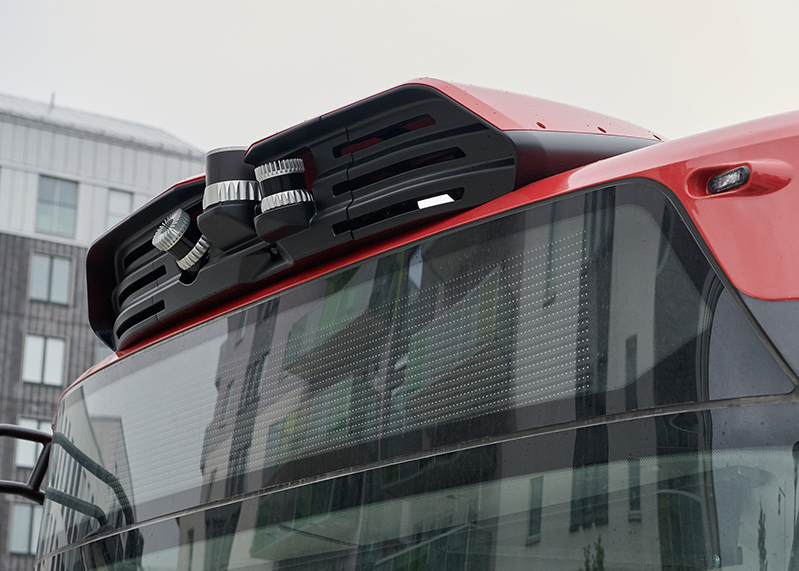

The new power supply architecture comes with improved electronic control units (ECUs) and functions that improve performance and facilitate diagnostics for repair and maintenance. It also enables new functionality within ADAS, e‑mobility and autonomous transport systems.
Safety features

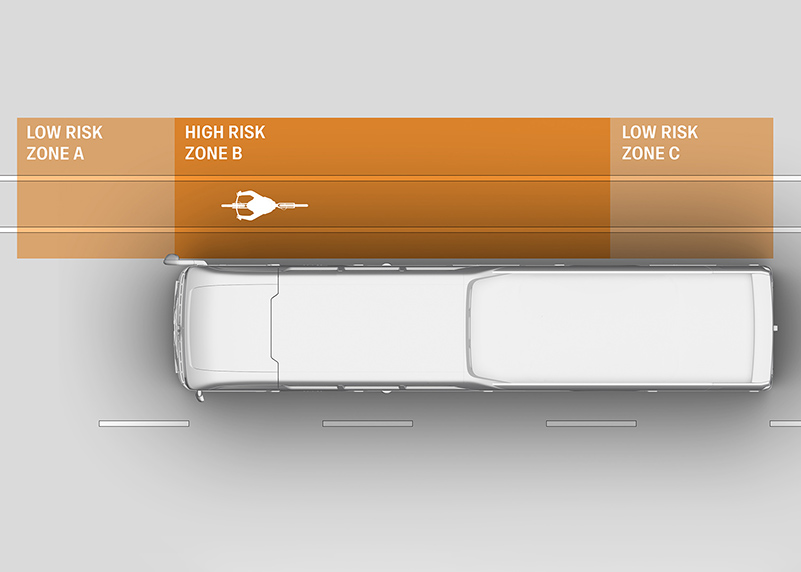

Scania buses have advanced driver assistance systems (ADAS) including vulnerable road user collision warning, blind spot warning, adaptive cruise control, attention support, and advanced emergency braking. Further, electro-pneumatic parking brake technology avoids unintentional bus motion and thus potential accidents. Through reinforced body and chassis construction, our buses are built to protect passengers, drivers and sensitive components.

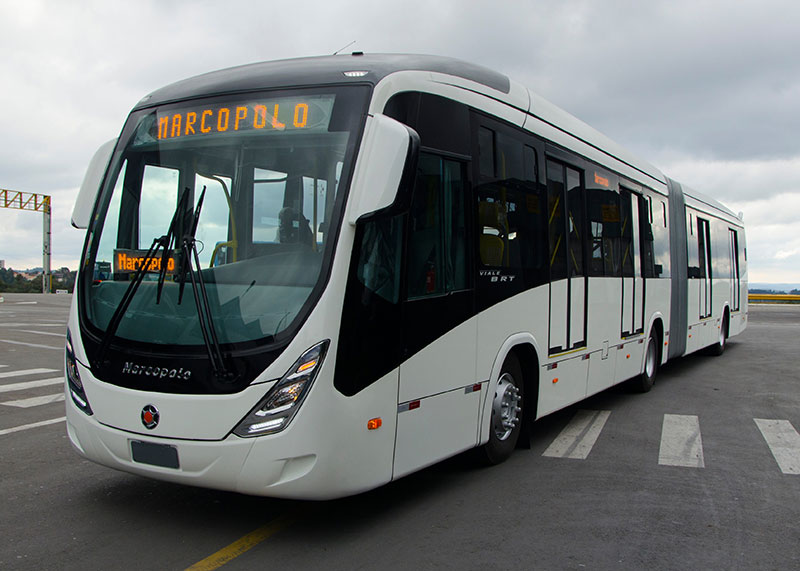

Exterior design
Buses are a natural part of the cityscape, and the new Scania Marcopolo has an attractive, strong and distinctive exterior character with an urban spirit; a metropolitan design, lighter and more aerodynamic. Additionally, accessibility and functionality, adheres to the most stringent regulations.
